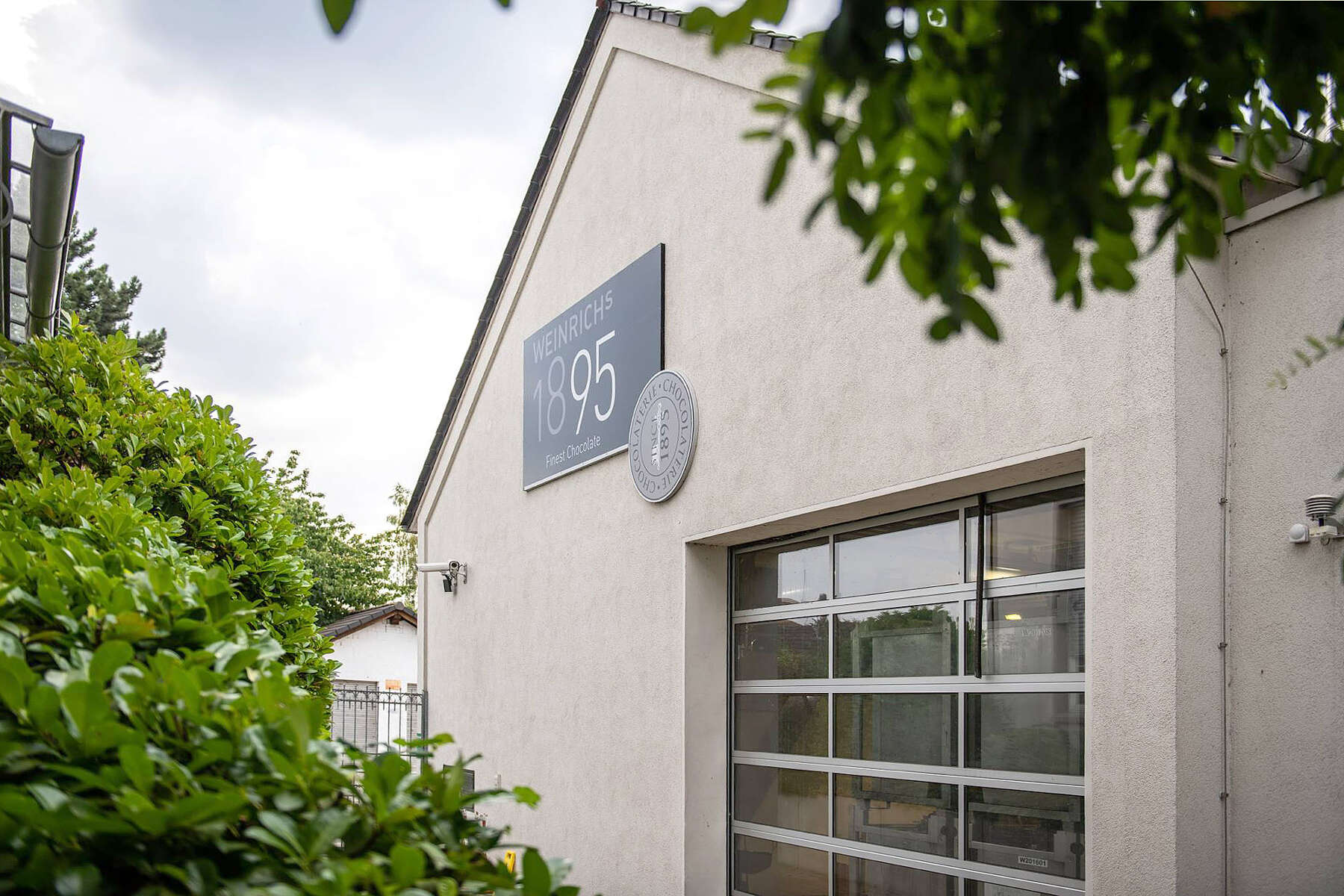

Ludwig Weinrich chocolate factory premises from outside

Keeping cool in the face of sweet temptation

For many people, chocolate is more than just one of life’s sweetest temptations. The complex machinery required for the industrial production of this luxury food item also presents engineers with major challenges. In an ever-tightening market, traditional companies in particular, such as the Ludwig Weinrich chocolate factory, need to rise to current economic and ecological challenges. To do this, they need reliable partners.

The project: New pumps for cooling water system

In the complex chocolate manufacturing process, the transport of cooling water to production systems may seem at first glance to be of secondary importance. In fact, it is a crucial aspect of the process. During the different stages of processing, the chocolate mass and other ingredients must be heated and then cooled immediately under controlled conditions. Unless this can be performed reliably, large quantities of chocolate may become unusable and the entire production cycle can come to a standstill.

The customer: Ludwig Weinrich chocolate factory

The Ludwig Weinrich chocolate factory in the town of Herford in East Westphalia, Germany, has been producing chocolate for more than 120 years. A fourth-generation family-run enterprise dedicated to sustainability, it has around 400 employees who work with sophisticated chocolate recipes every day to create perfect moments of indulgence.

System incorporating piping, pumps and valves — Cooling water system with Movitec VF pumps

The challenge: Redundancy and reduced energy costs at one stroke

The Ludwig Weinrich chocolate factory decided to replace its existing error-prone cooling water system, to ensure system availability and smooth manufacturing operations. Since, as in many other branches of industry, the old system was associated with rapidly escalating energy costs, the company also hoped that the new cooling water system would slash energy consumption to a level more appropriate for a modern manufacturing facility.

The solution: Selection of demand-driven pumps

As in many other projects, KSB collaborated with the Wendik Pumpen-Service company based in Herford, Germany. The two companies have a long history of collaboration in installing and maintaining KSB pumps spanning more than 50 years.

After extensive consultation with KSB, the data required for the system was collected internally and evaluated. Wendik Pumpen-Service then used this data for planning the new cooling water system and selecting the pumps. The company opted for the Movitec VF high-pressure centrifugal pump, which, in conjunction with PumpDrive 2, achieves the desired energy savings by delivering performance that constantly adapts to demand. The Bowe & Vaal company installed the piping for the system. Wendik Pumpen-Service installed and successfully commissioned the pumps and is also responsible for servicing

The installed redundancy means that the Ludwig Weinrich chocolate factory now has process reliability it can depend on. The selection of demand-driven pumps has also delivered incredible energy savings of 75% – a highly effective combination that works.

Piping, valves and Movitec VF pumps equipped with PumpDrive 2 — Two Movitec VF pumps equipped with PumpDrive 2

Figures I Data I Facts

Plant: Cooling water system for chocolate production

End user: Ludwig Weinrich chocolate factory

Pumps, frequency inverters, sensors, valves:

2 x Movitec VF 060-01-1 high-pressure centrifugal pumps with PumpDrive 2 (motor-mounted)
2 x SERIE 2000 DN100-PN10/16 swing check valves
8 x BOAX-SF DN100-PN16-EPDM-XU centred-disc butterfly valves
7 x BOAX-SF DN065-PN16-EPDM-XU centred-disc butterfly valves

Products used

Movitec

Dokumenter

Flertrinns, vertikal sentrifugalhøytrykkspumpe i leddkonstruksjon med motstående suge- og trykkrør med samme nominelle bredde (Inline-utførelse) og blokkonstruksjon for drivmotor. Med KSB SuPremE, en magnetfri synkronreluktansmotor (unntak: motordimensjoner 0,55 kW / 0,75 kW med 1500 min⁻¹ har permanentmagneter) i effektivitetsklasse IE4/IE5 etter IEC TS 60034-30-2:2016, for drift på turtallsreguleringssystem type KSB PumpDrive 2 eller KSB PumpDrive 2 Eco uten rotorposisjonsgiver. Festepunkter i henhold til EN 50347, dimensjoner i henhold til DIN V 42673 (07-2011). ATEX-utførelse tilgjengelig.

Detaljer

BOAX-S/SF

Dokumenter

Sentrisk sperrespjeld med firkantakseltapp etter ISO 5211 for sperrespjeld fra DN 350, med varmesperre, elastomer-ringbelg (EPDM XU eller Nitril K), med manuell hendel, manuelt reduksjonsgir eller elektrisk aktuator (BOAXMAT-S og BOAXMAT-SF), hus med sentreringsøyne (T2), hus med gjengeflensøyne (T4) for ensidig avflensing og montering som endeventil, klaffeskive i spesialstål 1.4308, tilkoblinger etter EN.

Detaljer

SERIE 2000

Dokumenter

Tobladet tilbakeslagsklaff i enklemutførelse, udelt hus i støpejern med lamellgrafitt, støpejern med kulegrafitt, stål, spesialstål, metall-/elastomertetning eller metall-/metalltetning, vedlikeholdsfri, tilkoblinger etter EN, ASME eller JIS.

Detaljer

PumpDrive 2/PumpDrive 2 Eco

Dokumenter

Selvkjølt frekvensomformer med modulær oppbygging som muliggjør en trinnløs turtallsendring av asynkrone og synkrone reluktansmotorer via analoge normsignaler, feltbuss eller betjeningsenhet. Takket være selvkjølingen til PumpDrive er det mulig med montering på motoren, på veggen samt i et koblingsskap. Regulering av opptil seks pumper uten ekstra regulator.
