Amarex KRT Submersible motor pump

Submersible motor pumpAmarex KRT

Horizontal or vertical single-stage submersible motor pump in close-coupled design, with various next-generation impeller types, for wet or dry installation, stationary or transportable version, with energy-saving motor and models for use in potentially explosive atmospheres.
See all documents and downloads

Main Applications

  • Waste water management
  • Service water supply systems
  • Disposal
  • Waste water treatment plants

Technical Data

  • Max. head120 m
  • Min. head0.1 m
  • Max. allowed working pressure12 bar
  • Max. allowed fluid temperature60 °C
Current Time 0:00
/
Duration Time 0:00
Progress: NaN%

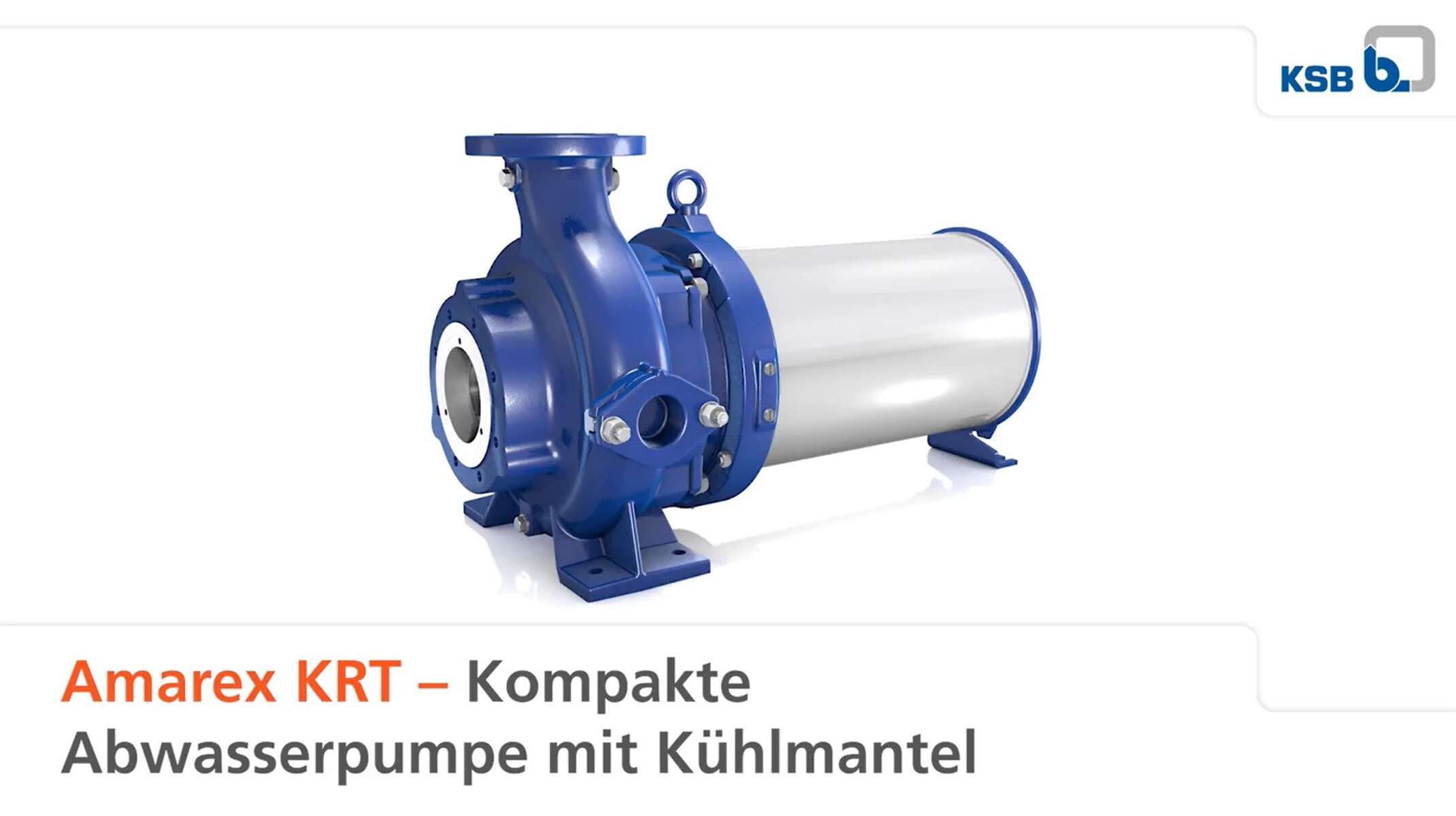

Amarex KRT with cooling jacket

The KSB Amarex KRT range of waste water pumps featuring jacket-cooled drives. They are designed to transport untreated waste water in municipal and industrial waste water management. The new pump sets are available with drive ratings of 10–30 kW and are suitable for vertical or horizontal dry installationThe pump sets meet all explosion protection requirements set out in the ATEX, FM and CSA standards.

Characteristic curves

  • Download
  • Download
  • Download
  • Download
  • Download
  • Download
  • Download
  • Download
  • Download

Documents

Title
Format
Size
Last change
Amarex KRT, 50 Hz (2553.45_EN)PDF17.745/4/2022
Amarex KRT; 60 Hz (2553.460_US)PDF12.2110/18/2021
Amarex KRT, DKN (2553.455385_EN)PDF8.310/18/2021
Title
Format
Size
Last change
Brochure AMAREX KRT (2300.023_EN)PDF6.625/4/2022
Title
Format
Size
Last change
Amarex KRT, DKN / N (2553.3785_EN)PDF21.945/4/2022
General Arrangement Drawings 50/60 Hz (2553.37_EN)PDF225.628/23/2022
Title
Format
Size
Last change
Rope spacer (2553.8011_EN)PDF0.345/4/2022
Dual Voltage (2553.8211_US)PDF78.475/4/2022
Title
Format
Size
Last change
Amarex KRT, CE; 50 Hz (2553.5_EN)PDF5.78/23/2022
LevelControl Basic 2 (4041.5_EN)PDF7.235/4/2022
Amarex KRT, DKN (2553.585_EN)PDF7.45/4/2022
Amarex KRT, 60 Hz (2553.524_US)PDF6.418/23/2022

Technical Data

  • FunctionPump
  • Connection typeFlange
  • Drive conceptWith electric actuator
  • Max. flow rate10080 m³/h
  • Min. flow rate0.1 m³/h
  • Max. head120 m
  • Min. head0.1 m
  • Mains frequency50 Hz,
    60 Hz
  • Mains voltage200 V,
    208 V,
    220 V,
    230 V,
    240 V,
    380 V,
    400 V,
    415 V,
    440 V,
    460 V,
    480 V,
    500 V,
    525 V,
    575 V,
    600 V,
    660 V,
    690 V
  • Casing materialEN-GJL-250,
    EN-GJS-500-7,
    EN-GJN-HB555(XCR14),
    GX2CRNIMOCUN25-6-3-3
  • Nominal pressurePN 10,
    PN 16,
    CL 125,
    CL 150
  • Max. allowed working pressure12 bar
  • Suction behaviourNon-self-priming
  • Max. allowed fluid temperature60 °C
  • Min. allowed fluid temperature0 °C

Characteristic curves

  • Download
  • Download
  • Download
  • Download
  • Download
  • Download
  • Download
  • Download
  • Download

Sectional Drawings

  • Download
  • Download
  • Download
  • Download
  • Download

Documents

Title
Format
Size
Last change
Amarex KRT, 50 Hz (2553.45_EN)PDF17.745/4/2022
Amarex KRT; 60 Hz (2553.460_US)PDF12.2110/18/2021
Amarex KRT, DKN (2553.455385_EN)PDF8.310/18/2021
Title
Format
Size
Last change
Brochure AMAREX KRT (2300.023_EN)PDF6.625/4/2022
Title
Format
Size
Last change
Amarex KRT, DKN / N (2553.3785_EN)PDF21.945/4/2022
General Arrangement Drawings 50/60 Hz (2553.37_EN)PDF225.628/23/2022
Title
Format
Size
Last change
Rope spacer (2553.8011_EN)PDF0.345/4/2022
Dual Voltage (2553.8211_US)PDF78.475/4/2022
Title
Format
Size
Last change
Amarex KRT, CE; 50 Hz (2553.5_EN)PDF5.78/23/2022
LevelControl Basic 2 (4041.5_EN)PDF7.235/4/2022
Amarex KRT, DKN (2553.585_EN)PDF7.45/4/2022
Amarex KRT, 60 Hz (2553.524_US)PDF6.418/23/2022
