Efficiency class

All standard 2-, 4-, 6- and 8-pole low-voltage three-phase motors (e.g. asynchronous motor) with power ratings from 0.12 to 1000 kW are categorised in efficiency classes in accordance with their efficiency.

Five different classes have been defined: IE1, IE2, IE3, IE4 and IE5. IE5-classed motors have the best efficiency; this is the class for energy-saving or high-efficiency motors. Older motor models without efficiency specification are included in class IE1.
See Fig. 1 Efficiency class

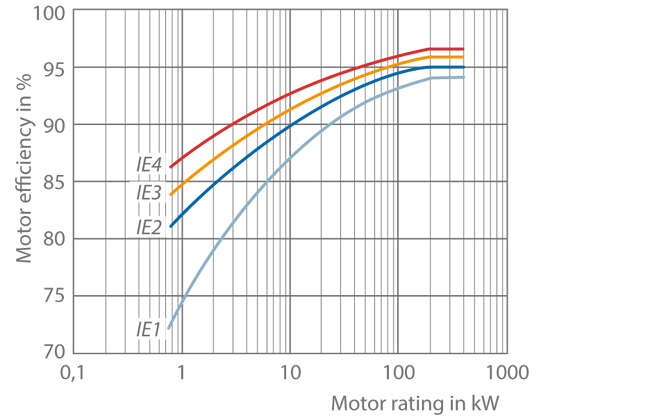

Fig. 1 Efficiency class: Power range up to 1000 kW, classification to IEC 60034-30

Fig. 1 Efficiency class: Power range up to 1000 kW, classification to IEC 60034-30

The motor efficiency (η) is calculated on the basis of the ratio between the shaft output power (POUT) and the electrical input power (PIN). The difference results from internal motor losses.
See Fig. 2 Efficiency class

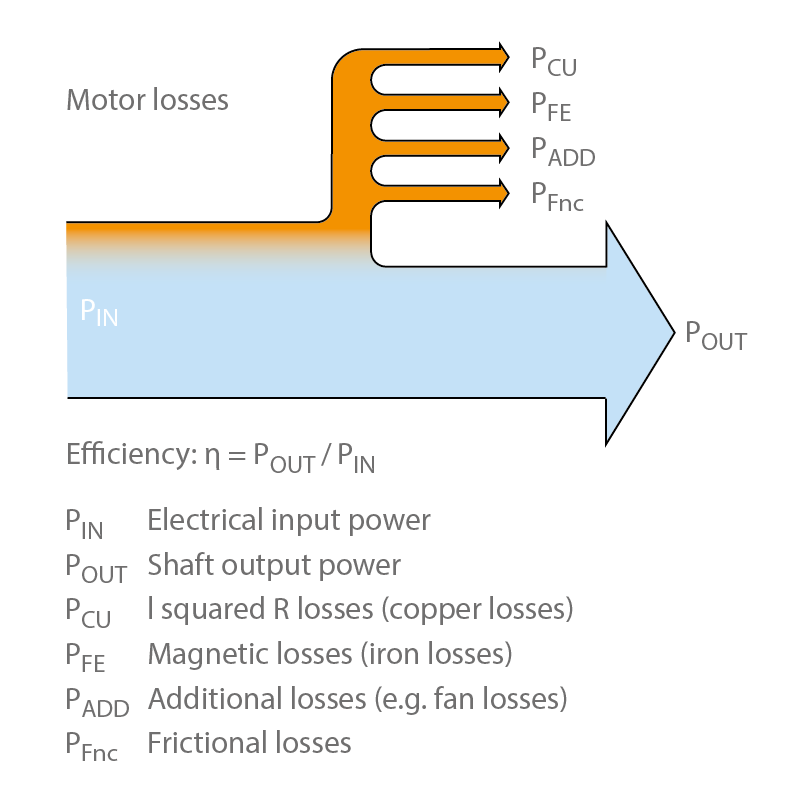

Fig. 2 Efficiency class: Individual losses of asynchronous motors (standard three-phase motors)

Fig. 2 Efficiency class: Individual losses of asynchronous motors (standard three-phase motors)
