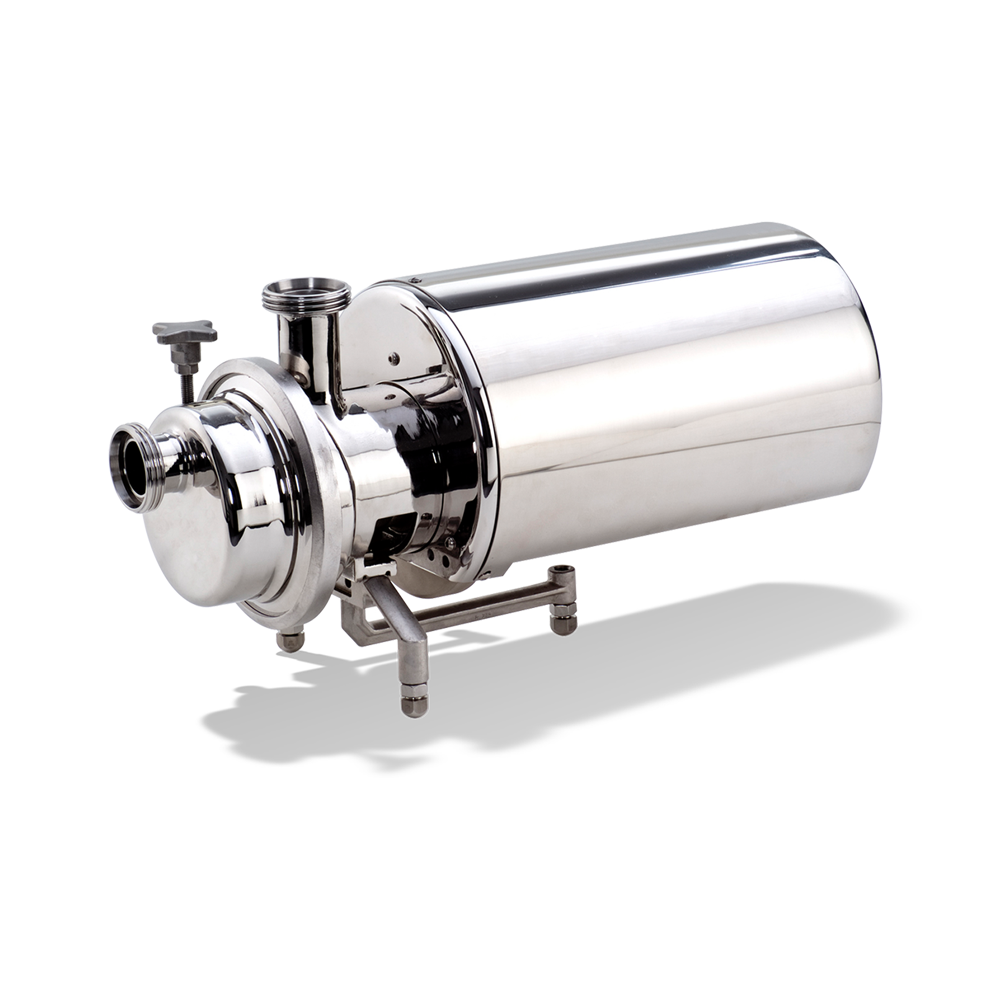

Vitaprime Dry-installed pump

Dry-installed pumpVitaprime

Service-friendly close-coupled side-channel pump (self-priming) with magnetless KSB SuPremE motor (exception: motor sizes 0.55 kW / 0.75 kW with 1500 rpm are designed with permanent magnets) of efficiency class IE4/IE5 and PumpDrive variable speed system. All wetted components are made of 1.4404/1.4409 (AISI 316L/CF3M) stainless steel. Hygienic design for the highest cleanability requirements (CIP/SIP-compatible). All materials comply with FDA standards and EN 1935/2004. Trolley available among other accessories. ATEX-compliant version available.
See all documents and downloads

Main Applications

  • Food industry / beverage industry
  • Chemical industry/Fine chemicals
  • Pharmaceutical industry
  • Further industrial applications

Technical Data

  • Max. flow rate60 m³/h
  • Max. head65 m
  • Max. allowed working pressure10 bar
  • Max. allowed fluid temperature100 °C

Your KSB contact: We’re here to support you

Do you need any assistance finding the right material number?
We’ll soon provide a list so you can directly place your purchase order.
Meanwhile please contact our support:

Your local contact


ksbsales@ksb.com
Your KSB contact : We’re here to support you

Benefits

  • Side channel pump for good and fast self-priming and for transporting fluids containing gas
  • Easy to clean with very little dead volume and excellent flushing capability
  • Service-friendly design, easy and fast to dismantle

Certificates

  • V07A_976471307-1_2
    Certified quality management to ISO 9001
    All countries
  • V07A_976471307-2_2
    Elastomers certified to FDA, 3A, USP Class VI
    All countries

Technical Data

  • FunctionPump
  • Connection typeClamped connection,
    External-thread connection,
    Flange
  • Drive conceptWith electric actuator
  • Max. flow rate60 m³/h
  • Min. flow rate1 m³/h
  • Max. head65 m
  • Min. head3.5 m
  • Mains frequency50 Hz,
    60 Hz
  • Mains voltage400 V,
    460 V
  • Casing materialGX2CRNIMO19-11-2
  • Nominal pressurePN 10
  • Max. allowed working pressure10 bar
  • Suction behaviourSelf-priming
  • Max. allowed fluid temperature100 °C
  • Min. allowed fluid temperature2 °C

Characteristic curves

Sectional Drawings

Documents

Title
Format
Size
Last change
2-page product description KSB SuPremE (4075.022_EN)PDF0.842/21/2023
2-page product description Vitaprime (1969.023_EN)PDF1.7110/18/2021
2-page product description PumpDrive (4074.022_EN)PDF0.942/21/2023
Title
Format
Size
Last change
Motor catalog (0902.53_EN)PDF5.612/24/2023
Title
Format
Size
Last change
KSB IE3 Motor; 0,55 - 132 kW (4076.8_EN)PDF2.448/23/2022
VITAPRIME (1969.84_EN)PDF4.3610/18/2021
Title
Format
Size
Last change
Type series booklet Vitaprime (1969.54_EN)PDF2.85/13/2023
Download CAD Files in KSB PARTCommunity
