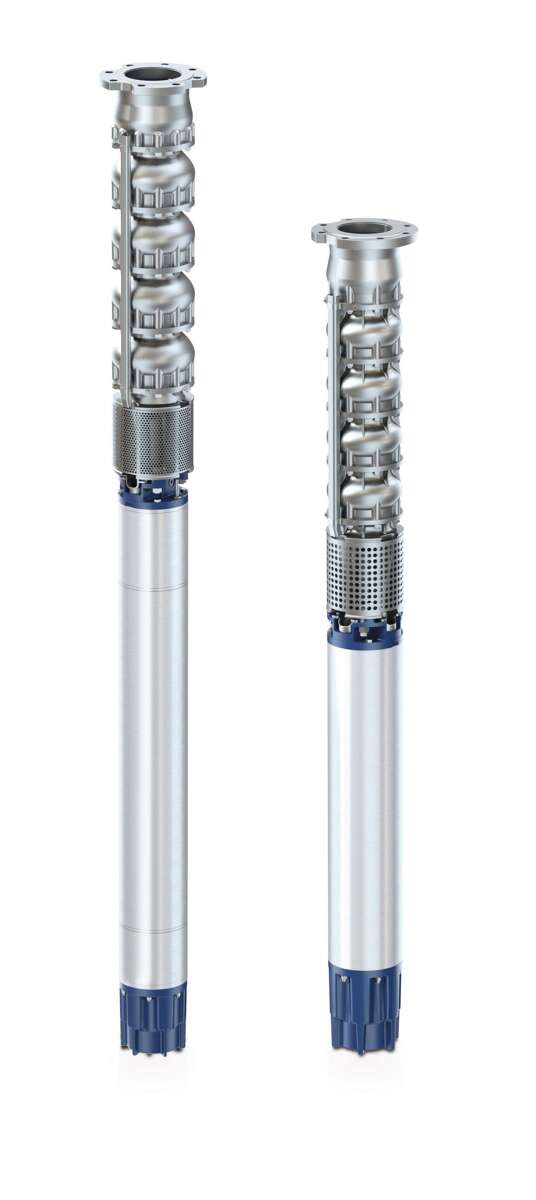

UPA S 200 and UPA S 250 in detail
With the UPA S 200 and UPA S 250 well pumps, KSB offers two powerful and highly efficient units for well diameters from 8 or 10 inches. Both models are available in numerous designs with a range of options – offering you the perfect variant to match your requirements.
Many more benefits, much more UPA!
The models from the UPA pump range are mainly used for drinking water and general water supply, general irrigation / spray irrigation, groundwater management, offshore applications and pressure boosting. Alongside their exceptionally low energy requirements, these pumps impress with outstanding operating reliability, durability and a long motor life:
- Excellent efficiency thanks to optimised hydraulic systems and smooth surfaces (investment casting)
- Optimum adjustment to the customer’s operating point thanks to freely configurable number of stages and custom impeller trimming
- Outstanding corrosion resistance thanks to high-grade stainless steel design
- Highly resistant to wear thanks to metal casing wear rings and optional SiC plain bearings for handling fluids containing large amounts of sand.
- Reliable operation thanks to improved lift check valve in anti-blockage design
- Continuous motor operation thanks to water-lubricated, maintenance-free plain bearing with self-aligning tilting pads
- Counter thrust bearing for reliably absorbing negative axial thrust
- Wear protection thanks to mechanical seal in carbon/ceramic or ceramic/ceramic material combination
- Reliable pressure equalisation system for maximum immersion depths
- Motors designed for maximum pump input power to prevent overloading
UPA S 200 and 250 in all its diversity
Whether connected to a 230 or 1000 Volt power supply, whether equipped with a synchronous or an asynchronous motor, a 200 or a 250 mm pump diameter – well pumps from KSB are available in a wide range of variants. Here is a brief overview.
| Discharge nozzle | UPA S 200 | G5 (standard), G3, G4 or DN80, DN100, DN125 |
UPA S 250 | G6 (standard), G8, NPT6, NPT8 orr DN150, DN200 | |
| Motor connection | UPA S 200 | 6“ and 8“ to NEMA, 10“ to KSB Werknorm |
UPA S 250 | 6“ and 8“ to NEMA, 10“ and 12“ to KSB works standard | |
| Drives | Both models | Rewindable asynchronous motor or high-efficiency permanent magnet synchronous motor |
| Installation | Both models | Cooling, suction or pressure shroud |
For all technical data, characteristic curves and further information please refer to our detailed product pages
UPA 200 / UPA S 200
Single-stage or multistage single-entry centrifugal pump in ring-section design for vertical or horizontal installation. Optionally available with lift check valve or connection branch. For well diameters of 8 inches and above.
UPA 250 / UPA S 250
Single-stage or multistage single-entry centrifugal pump in ring-section design for vertical or horizontal installation. Mixed flow hydraulic systems with impellers that can be turned down. Optionally available with lift check valve or connection branch. For well diameters of 10 inches and above.
