Submersible borehole pumps withstand all weathers
Reliably providing private households and industry with power from the socket involves some tough technical tasks. Generating electricity is only one of them. Where renewable energies are used, transmission network operators like TenneT play a particularly important role.

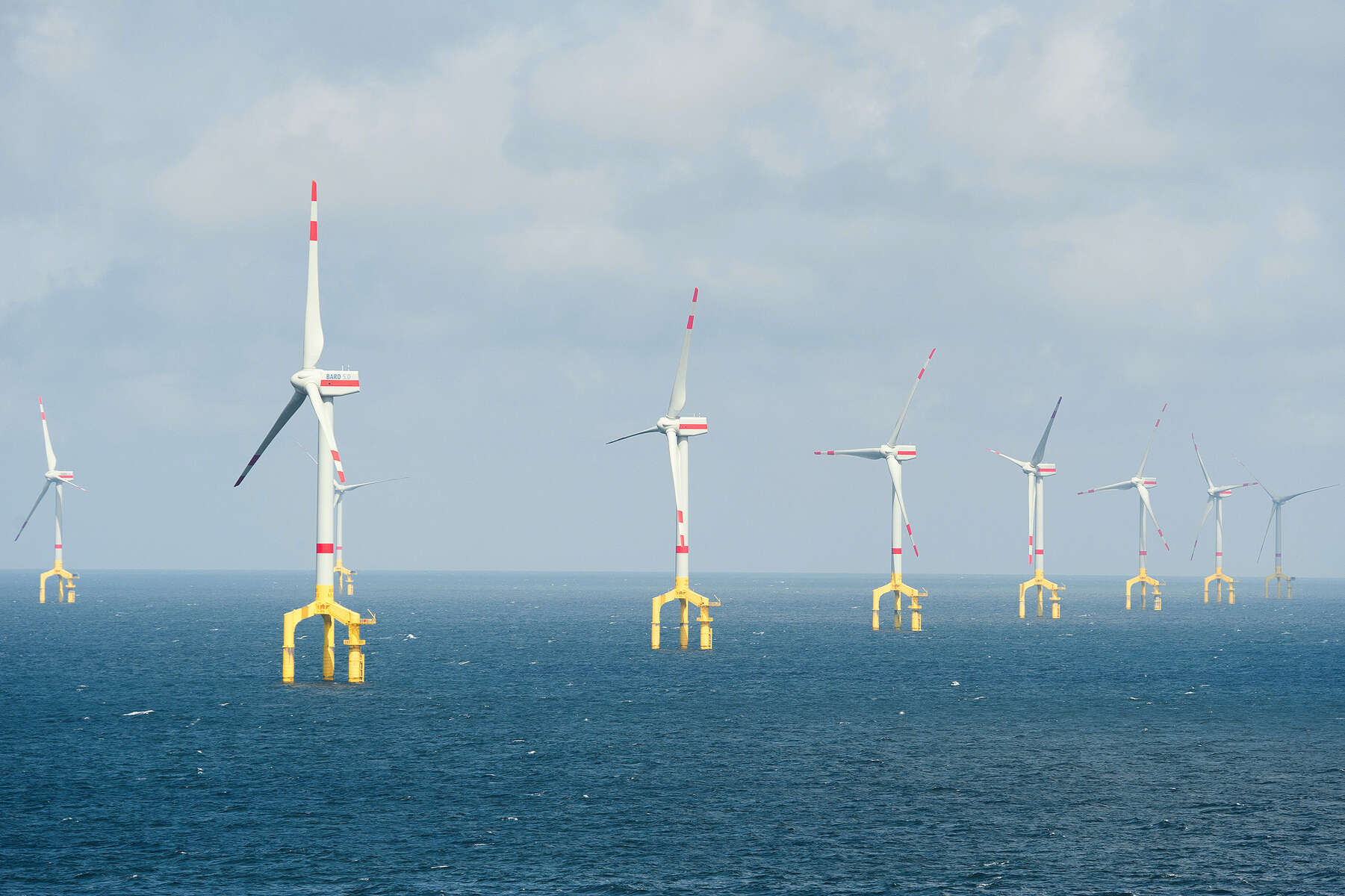

For example, TenneT makes sure that the power generated in offshore wind farms reaches the consumers on shore over large distances with as little loss as possible. One of TenneT's key partners is KSB with its extremely tough submersible borehole pumps.
Reliably providing private households and industry with power from the socket involves some tough technical tasks. Generating electricity is only one of them. Where renewable energies are used, transmission network operators like TenneT play a particularly important role.
For example, TenneT makes sure that the power generated in offshore wind farms reaches the consumers on shore over large distances with as little loss as possible. One of TenneT's key partners is KSB with its extremely tough submersible borehole pumps.
The project:
Pumps for cooling rectifiers
The client:
TenneT
The challenge:
Technology facing the toughest of conditions
TenneT’s converter platforms HelWin alpha & HelWin beta | © TenneT
The solution:
Use of special materials
A converter platform's pillars, in which the UPAs do their work | © TenneT
Data | Facts | Figures
Used products
UPA Control
สวิตช์เกียร์ของเคเอสบีเหมาะสำหรับการควบคุมและการป้องกันในลักษณะที่ขึ้นอยู่กับระดับของปั๊มมอเตอร์จุ่มใต้น้ำ ปั๊มน้ำแบบจุ่ม และปั๊มที่ติดตั้งแบบแห้งที่มีไดรฟ์อินเวอร์เตอร์กระแสสลับแบบเฟสเดียว 1~230 โวลต์ หรือไดรฟ์อินเวอร์เตอร์แบบสามเฟส 3~230/400 โวลต์/ 50 เฮิรตซ์ มอเตอร์เปิดใช้งานโดยตรง ระดับการป้องกัน IP56, ขนาด 205 × 255 × 170 มม. (สูง x กว้าง x ลึก)
UPA 200 / UPA S 200
ปั๊มหอยโข่งตอนเดียวหรือหลายขั้นชนิดทิศทางเดียว ในการออกแบบแบบตัดขวาง สามารถติดตั้งในแนวตั้งหรือแนวนอน ตัวเลือกการใช้เช็ควาล์วหรือชิ้นส่วนเชื่อมต่อ สำหรับเส้นผ่านศูนย์กลางของบ่อที่มีขนาดตั้งแต่ 8 นิ้วขึ้นไป
UPA 250 / UPA S 250
ปั๊มหอยโข่งตอนเดียวหรือหลายขั้นชนิดทิศทางเดียว ในการออกแบบแบบตัดขวาง สามารถติดตั้งในแนวตั้งหรือแนวนอน ระบบไฮดรอลิกกึ่งแกนพร้อมใบพัดบิดได้ ตัวเลือกการใช้เช็ควาล์วหรือชิ้นส่วนเชื่อมต่อ สำหรับเส้นผ่านศูนย์กลางของบ่อที่มีขนาดตั้งแต่ 10 นิ้วขึ้นไป
UPA 300 / UPA S 300
ปั๊มหอยโข่งตอนเดียวหรือหลายขั้นชนิดทิศทางเดียว ในการออกแบบแบบตัดขวาง สามารถติดตั้งในแนวตั้งหรือแนวนอน ระบบไฮดรอลิกกึ่งแกนพร้อมใบพัดบิดได้ ตัวเลือกการใช้เช็ควาล์วหรือชิ้นส่วนเชื่อมต่อ สำหรับเส้นผ่านศูนย์กลางของบ่อที่มีขนาดตั้งแต่ 12 นิ้วขึ้นไป
UPA 350 / UPA S 350
ปั๊มหอยโข่งตอนเดียวหรือหลายขั้นชนิดทิศทางเดียว ในการออกแบบแบบตัดขวาง สามารถติดตั้งในแนวตั้งหรือแนวนอน ระบบไฮดรอลิกกึ่งแกนพร้อมใบพัดบิดได้ ตัวเลือกการใช้เช็ควาล์วหรือชิ้นส่วนเชื่อมต่อ สำหรับเส้นผ่านศูนย์กลางของบ่อที่มีขนาดตั้งแต่ 14 นิ้วขึ้นไป
UPA C 100
ปั๊มหอยโข่งแบบหลายตอนในโครงสร้างตามแนวขวาง ทำจากสแตนเลสสำหรับหลุมที่มีเส้นผ่านศูนย์กลางตั้งแต่ 100 มม. (4 นิ้ว) รุ่นที่มีมอเตอร์ไฟฟ้ากระแสสลับแบบเฟสเดียวหรือมอเตอร์แบบสามเฟสที่มาพร้อมกับเคเบิลสายสั้น
UPA C 150
ปั๊มหอยโข่งโครงสร้างข้อต่อชนิดตอนเดียวหรือหลายตอน สามารถติดตั้งได้ในแนวตั้งหรือแนวนอน ทำจากสแตนเลสทั้งหมดสำหรับหลุมที่มีเส้นผ่าศูนย์กลางขนาดตั้งแต่ 150 มม. (6 นิ้ว)
