SRL Waste water pumping station

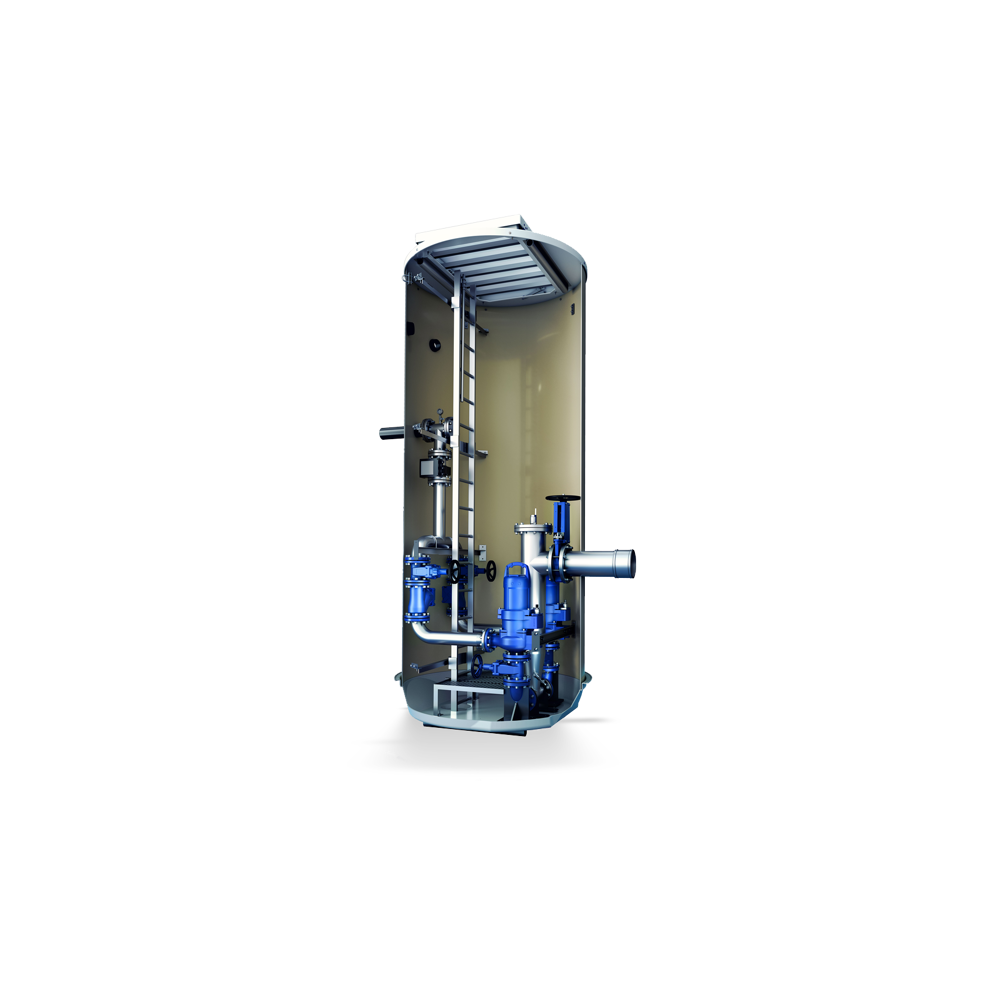

Waste water pumping station SRL

Package pump station with tank made of glass fibre reinforced polyester, equipped with two dry-installed Sewabloc pumps with a rating of 2.2 to 30 kW, integrated valves and a control unit with frequency inverters. Pump operation is adjusted in line with flow rate demand, thus minimising energy costs. This maintenance-friendly pump station prevents intermediate storage of waste water and the related odour nuisance.
See all documents and downloads

Main Applications

  • Waste water disposal
  • Drainage of buildings, drainage of premises
  • Redevelopment of premises
  • Pumped drainage

Technical Data

Max. flow rate
180 m³/h
Max. head
55 m
Max. allowed fluid temperature
40 °C

Your KSB contact: We're here to support you

Do you need any assistance finding the right material number?
We’ll soon provide a list so you can directly place your purchase order.
Meanwhile please contact our support:

Tel: +33 9 69 39 29 79


contact.ksbfrance@ksb.com
Your KSB contact : We’re here to support you

Technical Data

Drive concept
With electric actuator
Max. flow rate
180 m³/h
Min. flow rate
0.1 m³/h
Max. head
55 m
Mains frequency
50 Hz
Mains voltage
400 V
Suction behaviour
Non-self-priming
Max. allowed fluid temperature
40 °C
Min. allowed fluid temperature
2 °C
