KSB Amacan P, a High‑Performance Submersible Pump for Discharge Tube Applications

The Amacan P stands out for its efficient axial-flow hydraulics and robust submersible design. Engineered for installation within discharge tubes, it offers reliable, continuous operation even under challenging fluid conditions. Its proven performance has made it a trusted choice for water transport systems worldwide.

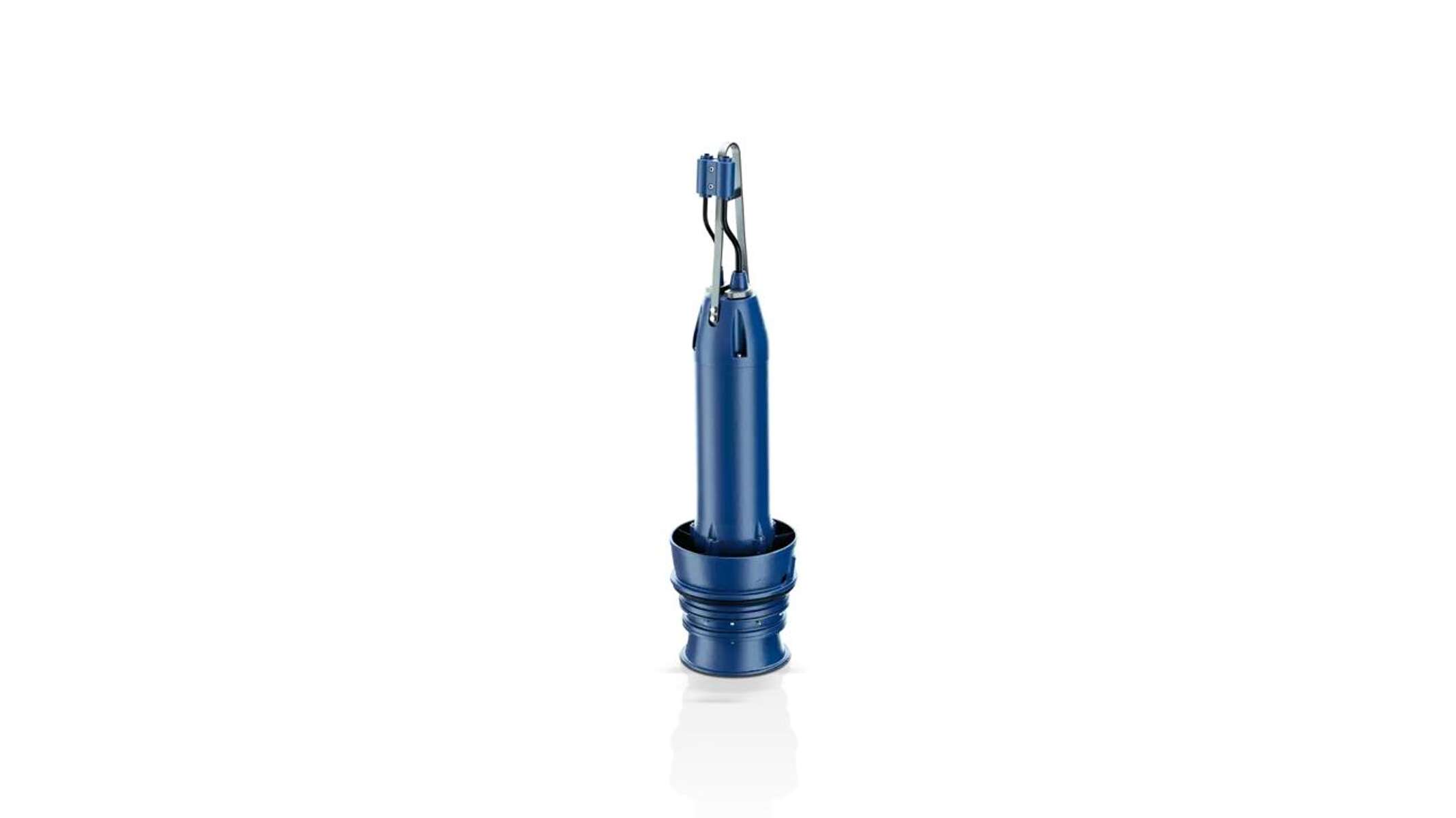

The KSB Amacan P is a high-performance submersible motor pump, engineered for wet installation directly within discharge tubes. Designed to handle high-capacity water flows efficiently and reliably, the Amacan P combines advanced hydraulic design with robust construction to meet the demanding requirements of municipal, industrial, and irrigation applications.
The pump features an axial propeller in ECB configuration and a single-stage, single-entry design, enabling effective water movement at high volumes. An ATEX-compliant version is also available to meet relevant safety standards.
Durability and operational reliability are supported by robust, high-performance materials. The casing and motor housing are made from grey cast iron, while the shaft and impeller are constructed from duplex stainless steel, providing resistance to corrosion, abrasion, and fibrous or solid materials commonly found in raw water, stormwater, or wastewater. These material choices ensure stable performance and long service life, even under demanding conditions.
The Amacan P is designed for precise and efficient installation. Its weight provides stable, self-centring placement within the discharge tube, while an integrated O-ring ensures a reliable seal. The pump can be installed and removed with ease, supporting operational continuity and simpler maintenance.
Operational reliability is further reinforced by dual mechanical seals and a water-tight cable gland protecting the motor against moisture. High-efficiency motor options and integrated monitoring support consistent performance and facilitate maintenance planning.
Its hydraulics are optimized to handle fibrous and solid-laden fluids, with large free passages and ever-clean ECB blades ensuring reliable, obstruction-free operation. This makes the Amacan P well suited for applications requiring reliable, continuous water flow, including wastewater management, stormwater drainage, urban water supply, industrial water handling, and irrigation systems.
Key Operating Data:
  • Flow Rate: 36000 m³/s
  • Maximum Head: 12 m
  • Motor Rating: up to 680 kW
  • Fluid Temperature: up to +40 °C
The KSB Amacan P delivers a combination of robust construction, efficient hydraulics, and intelligent monitoring to provide dependable performance across a wide range of water-handling applications.
For further questions about the Amacan P, please contact KSB at https://www.ksb.com/en-id/contact#!
