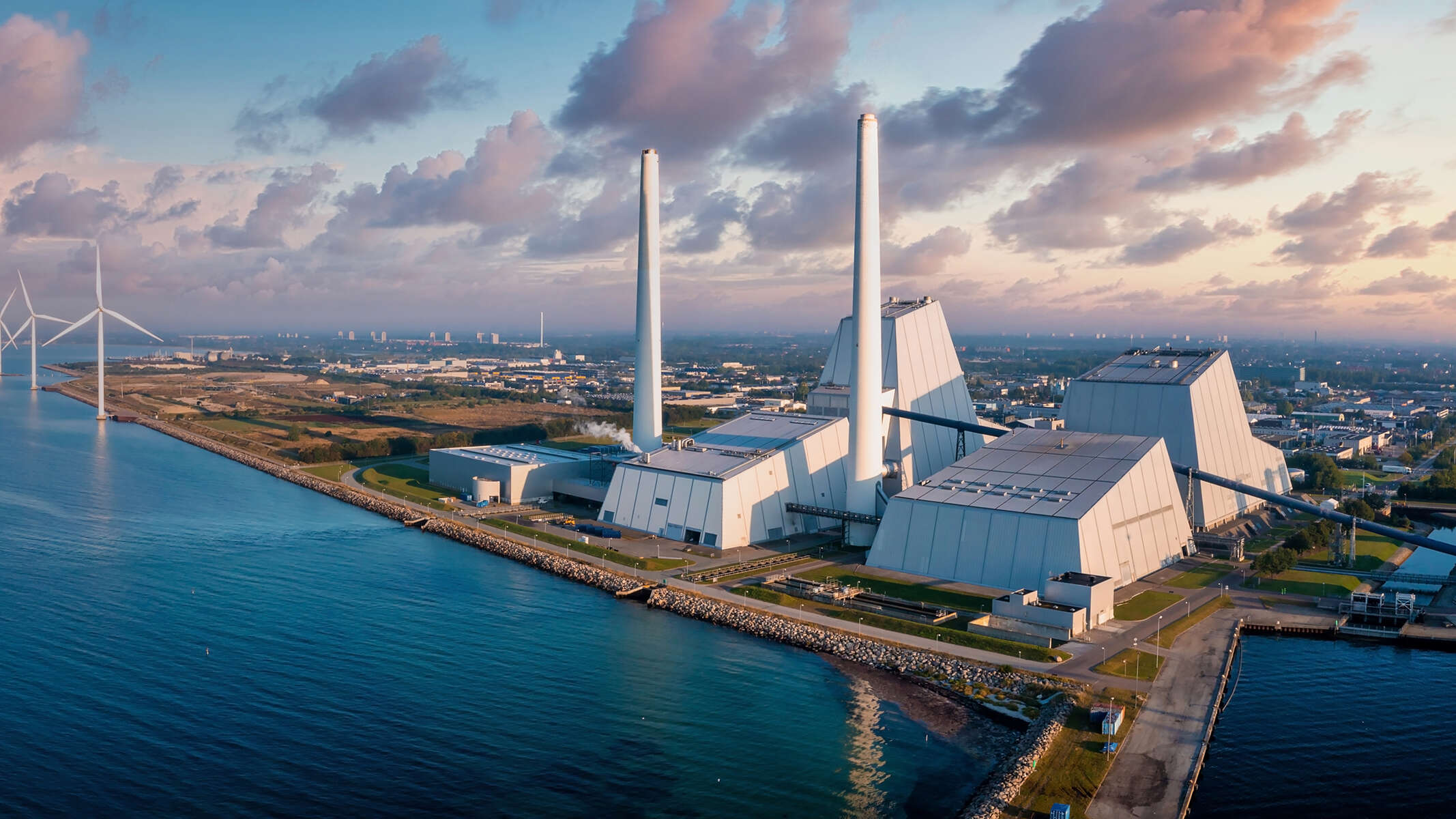

Fossil-fuelled power plant

Fossil-Fuelled Power Plants

Power plant pumps and valves from KSB: maximizing energy generation

More than 170,000 pumps and around 3 million valves from KSB ensure efficient power generation at low operating costs in over 1,000 fossil-fuelled power plants worldwide.

The energy market places special demands on machinery and materials

Being strongly influenced by raw material factors, the energy market demands above all flexible solutions. Targeted reductions in CO2 emissions mean that continuously rising energy demand will in future increasingly be met via renewable energies.

To ensure that energy can continue to be produced reliably, economically and in an environmentally friendly manner, advanced fossil-fuelled power plants need flexible solutions and high-performance products more than ever before. Excellent efficiency, low life cycle costs and absolute operating reliability have priority. Long-term smooth and completely reliable operation must be ensured at all times.


Outstanding performance under any load

Power plant pumps and high-pressure valves from KSB are ideally suited to the flexible operation of thermal power plants. They work particularly efficiently and reliably at all times – regardless of the capacity at which your power plant is operating. KSB pumps also make a decisive contribution to maintaining the excellent efficiencies of today’s steam power plants. This delivers substantial energy savings and a significant reduction in CO2 emissions. And you benefit from certainty in planning and costs essential for the sensitive energy market.


KSB products: as flexible as the energy market demands

Power plant pumps and valves from KSB are able to withstand the highest pressures and temperatures in condensate, feed water and steam systems – regardless of the load situation. Thanks to wear-resistant and corrosion-resistant materials developed in-house, KSB products ensure maximum operational reliability and economic efficiency in all processes. An example can be found in Residur® ceramic bearings developed by KSB, which deliver considerable cost savings.

As a full-range supplier, KSB is ready to support you across the entire technical planning process for the repair or modernization of your plant – from inspection and component manufacture to installation, test runs and complete new installations. KSB retrofits offer cost-effective and efficient retrofitting of individual pumps for fossil-fuelled power stations or even complete systems for fossil-fuelled power stations.

Support from KSB in a fossil-fuelled power plant: experts on hand

Commissioning a boiler feed pump in the lignite-fired power station Neurath, Germany

Our portfolio

KSB offers a wide range of products for fossil-fuelled power plants of all power classes

  • Boiler feed pumps
  • Recirculation pumps
  • Cooling water pumps and condensate pumps
  • Non-return valves and control valves
  • Butterfly valves and ball valves
  • Diaphragm valves
  • Feed water bypass valves and line blind valves

Applications include

  • District heating, boiler feeding and recirculation, cooling circuits, flue gas desulphurisation

Your benefits

  • Efficient power generation with low energy consumption
  • Long-term cost-savings and reliable operation of your plant
  • High-performance and reliable components – optimized for operational reliability
  • Performance testing conducted under real operating conditions
  • Modernization and optimization of the plant via appropriate retrofit measures
  • Decades of engineering experience in the power plant sector
  • Around-the-clock service from more than 170 service centres worldwide

Certified quality

ASME Certificate N / NS / NPT

ASME Certificate N / NS / NPT

Global

Find suitable pumps for use in fossil-fuelled power plants

Whether cooling water pumps or safety valves: KSB offers the right products for all applications in fossil-fuelled power plants.

HGM/HGM-S

HGM/HGM-S

Horizontal radially split product-lubricated multistage ring-section pump with radial impellers, axial and radial single-entry inlet.

CHTC

CHTC

Horizontal high-pressure barrel-type pumps with radial impellers, single-entry and double-entry, multistage, with flanges or weld end nozzles to DIN and ANSI.

CHTD

CHTD

Horizontal high-pressure barrel-type pumps with radial impellers, single-entry and double-entry, multistage, with flanges or weld end nozzles to DIN and ANSI.

Multitec

Multitec

Multistage horizontal or vertical centrifugal pump in ring-section design, long-coupled or close-coupled, with axial or radial suction nozzle, cast radial impellers and motor-mounted variable speed system. ATEX-compliant version available.

WKTB

WKTB

Vertical can-type ring-section pump on base frame, multistage, first-stage impeller designed as a double-entry suction impeller, radial impellers. Flanges to DIN or ANSI.

MegaCPK

MegaCPK

Horizontal radially split volute casing pump in back pull-out design, with radial impeller, single-entry, single-stage, to DIN EN ISO 5199, dimensions to DIN EN ISO 2858, complemented by nominal diameters DN25 and ≥DN200, in large range of material and seal variants; also available as a variant with "wet" shaft and conical seal chamber. ATEX-compliant version available.

HPK

HPK

Horizontal radially split volute casing pump in back pull-out design, with radial impeller, single-entry, single-stage, to ISO 2858 / ISO 5199. Optional TRD type testing by TÜV. ATEX-compliant version available.

RDLO

RDLO

Single-stage axially split volute casing pump for horizontal or vertical installation, with double-entry radial impeller, mating flanges to DIN, EN or ASME.

Find suitable valves for use in fossil-fuelled power plants

NORI 40 ZXL/ZXS

NORI 40 ZXL/ZXS

Globe valve to DIN/EN with flanged ends (ZXL), butt weld ends or socket weld ends (ZXS), with gland packing, with on/off disc or throttling plug, rotating stem, seat/disc interface made of wear and corrosion resistant chrome steel or chrome nickel steel.

NORI 160 ZXL/ZXS

NORI 160 ZXL/ZXS

Globe valve to DIN/EN with flanged ends (ZXL), butt weld ends or socket weld ends (ZXS), with gland packing, with on/off disc or throttling plug, rotating stem, seat/disc interface made of wear and corrosion resistant 17 % chrome steel or Stellite.

NORI 500 ZXSV

NORI 500 ZXSV

Globe valve to DIN/EN with butt weld or socket weld ends, gland packing, throttling plug, non-rotating stem, bayonet-type body/yoke connection, integrated position indicator, seat/disc interface made of Stellite.

STAAL 100 AKD/AKDS

STAAL 100 AKD/AKDS

Gate valve to DIN/EN with flanged ends (AKD) or butt weld ends (AKDS), with bolted bonnet, body of forged or welded construction, non-rotating stem, split wedge with flexibly mounted discs for precise alignment with the body seats. Seat/disc interface made of wear and corrosion resistant 17 % chrome steel or Stellite.

ZTS

ZTS

Gate valve to DIN/EN or ANSI/ASME with butt weld ends, pressure seal design, billet-forged body, seat/disc interface made of wear and corrosion resistant Stellite, split wedge with flexibly mounted discs for precise alignment with the body seats.

ZRS

ZRS

Swing check valve to DIN/EN with butt weld ends, pressure seal design, internally mounted hinge pin, billet-forged body; seat/disc interface made of wear and corrosion resistant Stellite.

ZJSVA/ZXSVA

ZJSVA/ZXSVA

Start and stop control valve to DIN/EN, with butt weld ends, pressure seal design, billet-forged body, seat/disc interface made of wear and corrosion resistant Stellite, single-piece stem and throttling plug assembly for high differential pressures.

Illustration of the phases of a product life cycle: Consultation and analysis, commissioning, operation and repair

Service at KSB SupremeServ means being fully looked after

KSB SupremeServ offers you a comprehensive range of services and spare parts for pumps, valves and other equipment – including for products from other manufacturers – from face-to-face consultation to installation, commissioning, maintenance and repair. More than 3500 specialists in over 190 service centres worldwide are available around the clock, seven days a week. Concentrate on your core business – and let us take care of the rest.

Installation and commissioning

Installation and Commissioning

Reliability right from the start: KSB service specialists are there to take care of your system by overseeing the commissioning of your pumps and entire system. Professional, reliable, on hand worldwide.

  • For a start-up as required
  • Also for non-KSB products
Maintenance inspection management

Maintenance inspection management

Inspecting and repairing pump sets while keeping downtimes short: KSB Service offers comprehensive maintenance inspection management for industrial facilities and power stations.

  • Pump inspection
  • System inspection
Reverse Engineering for pumps and valves

Reverse Engineering

Reverse engineering makes it possible to quickly reproduce pump spare parts that are hard to find or no longer available.

  • Straightforward reproduction of spare parts
  • The quality matches that of the original
