KSB high-performance pumps for the Thalassia geothermal plant
5 min read

Provides energy for an entire city: The Thassalia marine thermal energy project

The Thassalia seawater plant supplies sustainable energy for buildings with a 500,000 m² surface area. Find out why high-performance pumps from KSB make a major contribution to the project's success.

The Thassalia seawater plant supplies sustainable energy for buildings with a 500,000 m² surface area. Find out why high-performance pumps from KSB make a major contribution to the project's success.

The Project:

Marine thermal plant „Thassalia”

For the population of coastal areas the ocean offers huge energy potentials – which can now, for the first time, be tapped into on a large scale, with KSB’s contribution: In October 2016, Thassalia, a 35 million euro marine thermal plant, was inaugurated in the port of Marseille. The plant harnesses the thermal energy provided by the Mediterranean, supplying sustainable energy for buildings with a 500,000 m² surface area in the new Eco-Cité Euroméditerranée, currently the largest urban renewal project in Southern Europe.

The Thassalia plant significantly contributes to the Eco-Cité Euroméditerranée meeting the French High Quality Environmental Standard for green building. The plant reduces greenhouse gas emissions by 70 %, power consumption by 40 % and water consumption by 65 %.

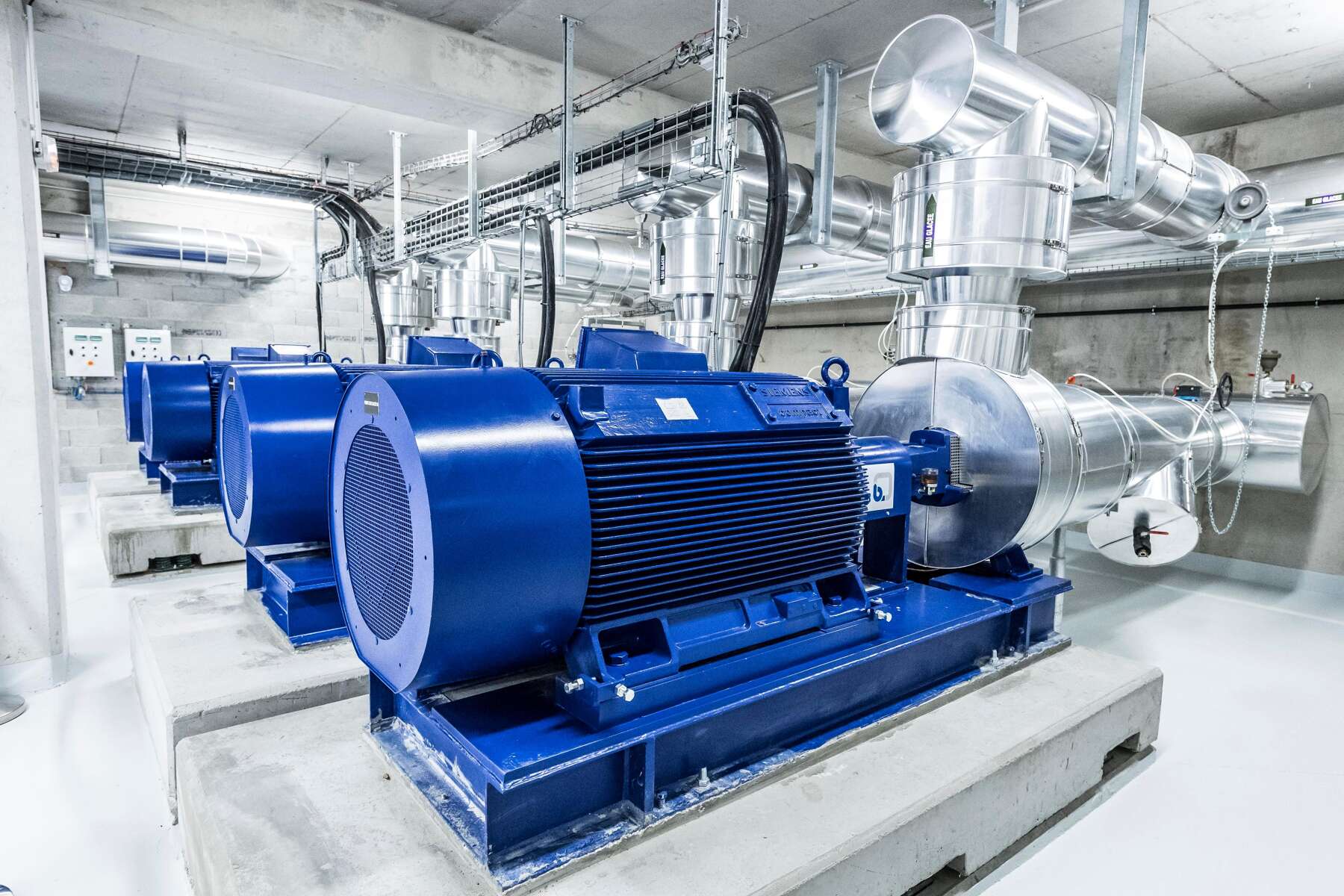

KSB CPKN pumps as seawater pumps with 160 kW variable speed motors made of corrosion-resistant Noridur® material

KSB CPKN pumps as seawater pumps with 160 kW variable speed motors made of corrosion-resistant Noridur® material

The Client:

The French ENGIE Group

The French ENGIE Group, based in Paris, is one of the world’s largest energy producers and energy service providers with over 150,000 employees in about 70 countries. Apart from conventional energy generation, the company also focuses on renewable energy sources such as wind power, hydropower and thermal energy.

The Challenge:

Warm and cold water for the ÉcoCité

KSB was in charge of designing a network for hot and cold water for the entire Eco-Cité district – a highly demanding project, for many reasons:

  • Combined heating and cooling supply
  • Aggressive seawater as transfer fluid
  • Large total area of the Eco-Cité spanning 480 hectares
  • High efficiencies to ensure the lowest possible power consumption
  • Lowest possible noise emissions to protect the people living nearby
  • Fast on-site service for maintenance and repair ensuring smooth operation of the plant 24/7

The Solution:

A material developed by KSB called Noridur®

Seawater from a depth of seven metres is pumped to the thermal system by six high-performance pumps of the CPKN type. Each of these seawater pumps is fitted with a 160 kW variable speed motor. The total flow rate equals 1000 l/s. The aggressive nature of seawater that is heated up to 30 °C in the return system requires the seawater pumps to be well protected against corrosion. All parts in contact with water are therefore made of a special duplex stainless steel – a material developed by KSB called Noridur®. For the same reason, the discs of the ISORIA butterfly valves installed are coated with Halar.

The valves with sizes of up to DN 700 fulfil shut-off and control functions during seawater intake. They are actuated by robust pneumatic or manual actuators. The seawater, which ranges in temperature from about 14 °C in winter to 22 °C in summer, supplies the heat exchangers connected to the thermo-refrigeration pumps. It provides heating when the water is cold and cooling when it is warm. Heating or cooling is then distributed to the Eco-Cité buildings via a hot water network of 60 °C and a separate cooling water network of 5 °C.

The network with a length of three kilometres requires high-performance pumps for both circuits. The two circuits are each fitted with four powerful standardised chemical pumps of the MegaCPK type. Each of these pumps can achieve heads of between 110 m and 120 m of water. The motor ratings range from 160 kW to 355 kW with an efficiency of up to 84 % at speeds of 1500 rpm to 1750 rpm.
Standardised chemical pumps of the MegaCPK type

Data I Facts I Figures

Client: ENGIE SA

Founded in: 1858

Employees: 153.090 (2016)

Sales revenue: 66,6 Mrd. Euro (2016)

Industry: energy supply

Thassalia project data
Supply of the area to be supplied with hot and cold water:
480 hectares with a building surface area of 500,000 m2

KSB type series used in this project

Thermal plant:
Fluid handled: seawater at a temperature of up to 30 °C
  • 6 KSB CPKN pumps as seawater pumps with 160 kW variable speed motors, wetted parts made of corrision-resistant Noridur®,
  • 6 ISORIA butterfly valves with Halar-coated discs,

Supply network:
  • 8 MegaCPK standardised chemical pumps with motor ratings of 160 to 355 kW (efficiency up to 84 % at speeds between 1500 rpm and 1750 rpm

Comissioned: 2016
