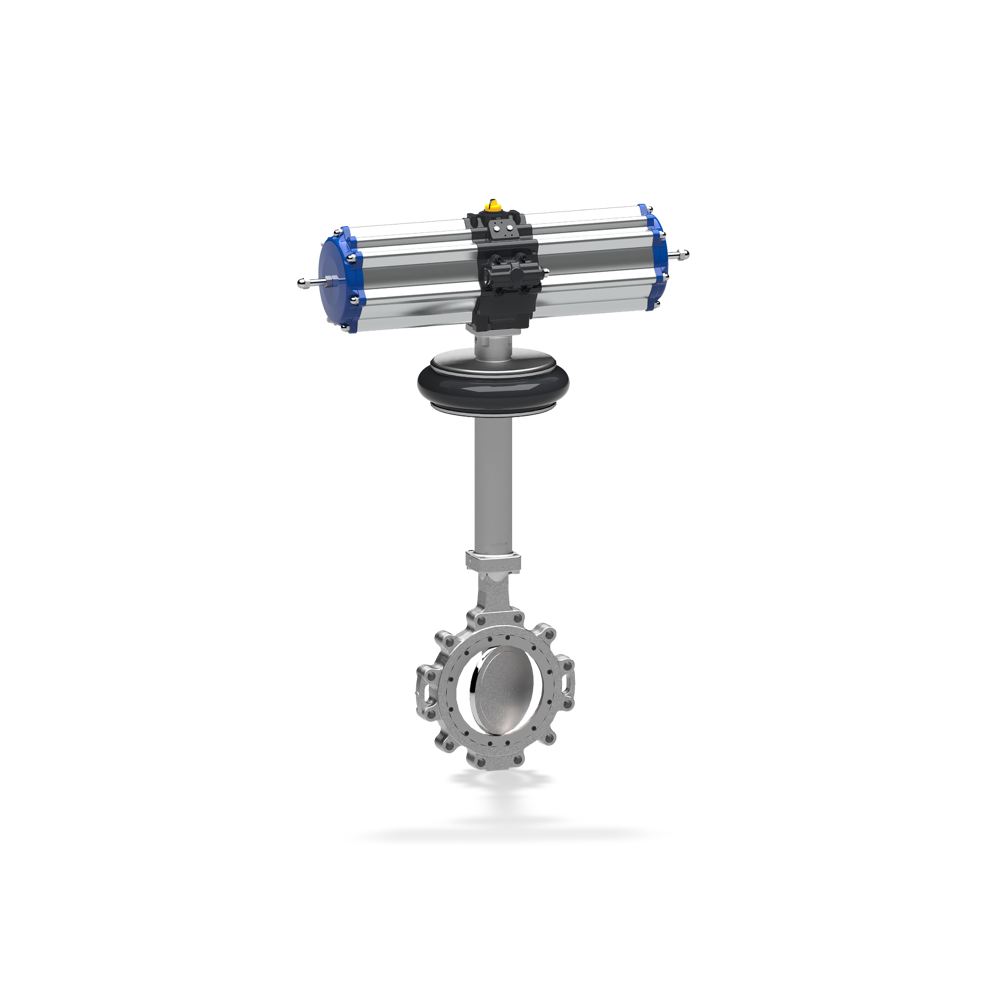

DANAÏS CRYO AIR Butterfly valve

Butterfly valve DANAÏS CRYO AIR

Double-offset butterfly valve for cryogenic applications, wafer-type body (T1), full-lug body (T4).
See all documents and downloads

Main Applications

  • Gas pipelines
  • Gas storage facilities
  • Pipelines and tank farms
  • Process engineering

Technical Data

Nominal pressure
CL 150
Max. nominal size
DN 600
Maximum allowable fluid temperature
200 °C

Your KSB contact: We’re here to support you

Do you need any assistance finding the right material number?
We’ll soon provide a list so you can directly place your purchase order.
Meanwhile please contact our support:

customer service representatives

Benefits

  • Tight shut-off
    • Tight shut-off in both directions, at ambient temperature as well as in cryogenic applications
  • Easy to install

    Technical Data

    Function
    Shut off/control flow
    Connection type
    Installation between flanges
    Design concept Drive
    With handwheel,
    With pneumatic actuator
    Casing material
    A351 GRADE CF8M,
    A351 GRADE CF3M
    Nominal pressure
    CL 150
    Max. nominal size
    DN 600
    Min. nominal size
    DN 50
    Maximum allowable fluid temperature
    200 °C
    Minimum allowable fluid temperature
    -253 °C
    Valve body type
    Wafer-type body,
    Full-lug type, raised faces

    Sectional Drawings
