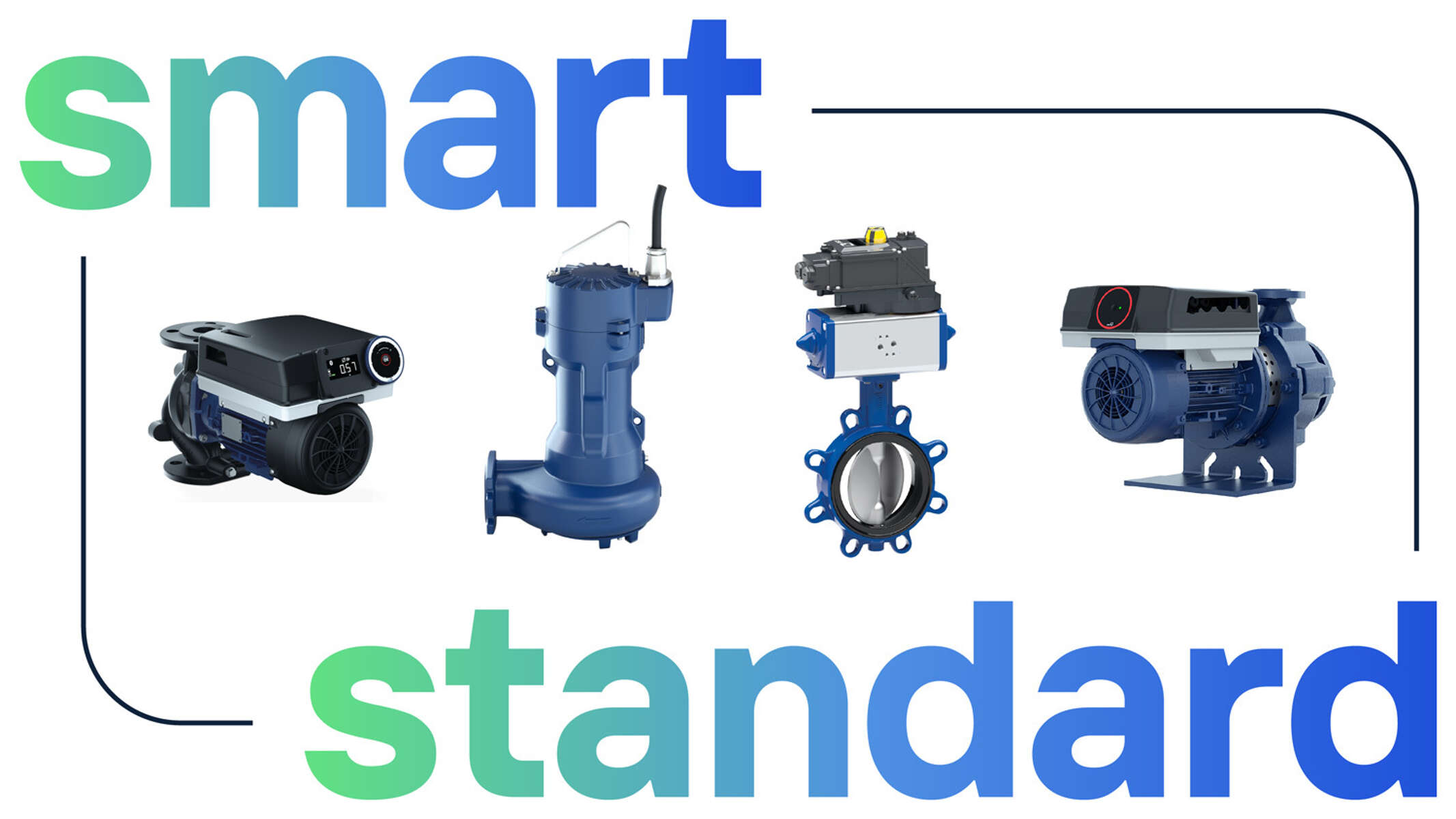

Smart Standard
Digital innovations for real-world benefits
Efficient operation and perfect connectivity: our intelligent standard pumps and valves are the missing piece of the jigsaw for your smart factory, smart building or waterworks. Whatever your requirements, we have a smart standard solution right at hand. Tell us about your application – and look forward to top-notch quality and just-in-time delivery.
EtaLine Pro
EtaLine Pro – more compact, flexible and efficient. Service-friendly high-efficiency variable speed in-line pump with dry-rotor permanent magnet synchronous motor. Integrated sophisticated pump functions. Well ahead of the ErP Directive's efficiency requirements. For heating and air-conditioning applications as well as water supply systems.
AmaRex Pro
Intelligent, vertical submersible motor pump set for wet installation, single-stage, with open two-vane impeller (D-max), IE5 motor and integrated functions such as automatic clogging detection and deragging.
Calio Pro
Maintenance-free high-efficiency flanged or screw-ended glandless pump with high-efficiency electric motor and continuously variable differential pressure control.
ISORIA 10/16
Centred-disc butterfly valve with ISO 5211 compliant square shaft end, sealed by elastomer liner, with lever or manual gearbox, pneumatic, electric or hydraulic actuator. Wafer-type body (T1), semi-lug body (T2), full-lug body (T4) or U-section body with flat faces (T5). Body types T2 and T4 are suitable for downstream dismantling and dead-end service with counterflange. Connections to EN, ASME, JIS.
BOA-Control/ BOA‑Control IMS
Balancing, measurement and shut-off valve with flanged ends to DIN/EN, constant measurement accuracy independent of differential pressures. Body in standard face-to-face length to EN 558/1, throttling plug, scaled position indicator, travel stop and insulating cap with anti-condensation feature; maintenance-free, full insulation possible. Also available with electrostatic plastic coating (EKB) and DVGW-certified for drinking water. With integrated ultrasonic sensors not coming into contact with the fluid handled. Stationary monitoring by means of BOATRONIC 100 MOD (24 V AC/DC, Modbus) of flow direction, volume flow rate and temperature, and optional recording of supply and return temperature as well as thermal output and quantity of heat. Mobile measurement of flow direction, volume flow rate and temperature using the BOATRONIC MS (battery powered) / BOATRONIC 100 (rechargeable battery powered) measuring computers.
