Digital monitoring tool KSB Guard continuously monitors pumps
Thanks to KSB Guard, it is now possible to avoid malfunctions and efficiently plan maintenance. The tool is in operation at the ROLF SANDVOSS INNOVATION CENTER of SAMSON AG.
The project: KSB equips unique development and test centre with monitoring tool and pumps
As well as being the world’s largest development and test centre for valve technology, it is also unique with regard to its form: the ROLF SANDVOSS INNOVATION CENTER (RSIC) operated by SAMSON. After two years of construction work, the RSIC in Frankfurt was officially inaugurated in 2017.
Since then, the 7,000 square metre facility has been used for research, development and testing. The goal of SAMSON’s innovation centre is to develop reliable and innovative products of excellent quality for a wide range of applications – and to do this as quickly as possible.
A high degree of reliability and quality can only be guaranteed when products are tested in advance under the most extreme conditions, which is exactly what SAMSON does at the innovation centre. The basis for this is a state-of-the-art testing system – the centrepiece of the facility. It enables tests to be performed in a wide variety of test scenarios with regard to the fluids used, process conditions and industrial application fields.
An important part of the system is the KSB Guard digital monitoring tool. It continuously monitors the pumps, which were also supplied by KSB. Continuous monitoring enables SAMSON to avoid unscheduled downtimes and efficiently plan pump maintenance, ensuring that the system is operated economically and smoothly.
In addition to striving for excellent quality products, SAMSON and KSB are also united by their successful collaboration on previous projects which fostered a spirit of mutual trust. In addition to opting for KSB products, SAMSON furthermore asked KSB to act as its full-service partner for this unique project.
The KSB pumps located in the cellar need to start smoothly at all times, even under the most extreme loads and with irregular operating times.
The customer: SAMSON AG is a manufacturer of control valve technology
Headquartered in Frankfurt am Main, SAMSON AG offers system and product solutions for controlling all types of fluids. The company produces valves, self-operated regulators, actuators, valve accessories, signal converters, automation systems, sensors, thermostats and digital solutions. Fields of application include chemical facilities, power stations, the distribution of district heating, food production and building automation. SAMSON was founded by Hermann Sandvoss in 1907 and today employs around 4,400 staff worldwide.
The challenge: Extreme conditions for the pumps to handle while simultaneously ensuring minimal monitoring and maintenance
The project entailed a whole series of challenges.
- SAMSON required a large number of different pumps which had to be able to withstand sometimes extreme conditions. As SAMSON measures Kvs values and tests pressure losses on its valves, the pumps had to be able to handle pressures of up to 120 bar and flow rates of up to 10,000 cubic metres per hour.
- Pump operation: the pumps are operated irregularly and with long downtimes. Nevertheless, the pumps must be able to be started up quickly and smoothly at all times.
- The pumps need to operate reliably and be easy to maintain. Removing the pumps and then reinstalling them again not only disrupts operations, it also costs time and money.
- The system is located in the cellar. However, a stable connection must be established between KSB Guard and the mobile phone network to ensure the exchange of data.
KSB Guard and KSB pumps only account for one part of the system. To successfully complete the project, effective collaboration with other companies involved was also required
The solution: KSB Guard identifies failure risks at an early stage, enabling maintenance to be precisely planned

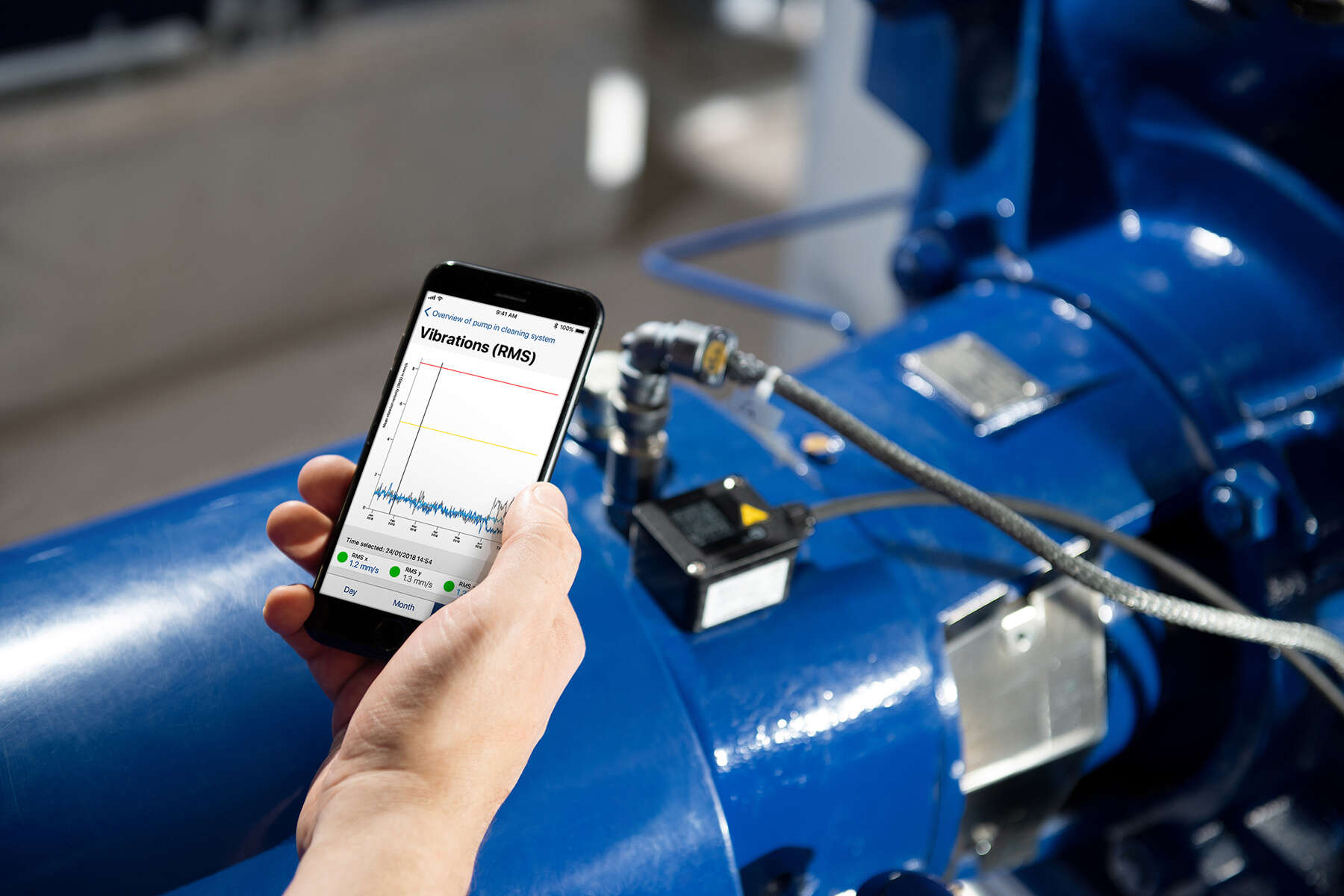

The pumps need to operate smoothly despite extreme loads and irregular operating hours. At the same time, monitoring and maintenance needed to be reduced to a minimum. Thanks to the digital monitoring tool KSB Guard, both are possible. Vibration and temperature sensors installed on the pumps continuously monitor the pumps.
KSB Guard then sends the recorded data to the computer or app via the gateway. As the gateway can be positioned flexibly, this enables a stable connection to the mobile phone network to be established – even if KSB Guard is located in the cellar, as was the case with SAMSON.
This provides SAMSON with an overview of all information at all times. Failure risks can be identified at an early stage and maintenance can be precisely planned in advance. Not only does this reduce unscheduled downtimes and disruptions to operations, it also saves on costs.
A total of seven different KSB pumps are installed in the system with various different performance profiles. The individual pump models are Multitec, HPKL, MegaCPK, Etabloc, RDLO, HGM and Movitec.
The smaller pumps feature the PumpDrive variable speed system, which is especially recommended for use in systems with fluctuating demand – as is the case with the innovation centre. The flexible speed control system enables demand-driven operation. This saves energy and increases the efficiency and availability of the pump.
Detailed planning and structured organisation between SAMSON and KSB were crucial to the success of the project. Further success factors in the course of the project were a partnership-based approach to cooperation with all of the companies involved and the reliable supply and delivery of the products and services by KSB.
“Due to previous projects we were already very familiar with KSB’s products and were therefore confident that we had chosen the right partner to support us with such a complex project. KSB is also a pioneer in Industry 4.0 and digitalisation, as demonstrated for example by KSB Guard.”
Domagoj Vnucec, Head of ROLF SANDVOSS INNOVATION CENTER, SAMSON AG
Products used
Etabloc
Bomba com corpo de voluta de estágio único, com potências de acordo com a norma EN 733, com camisa do veio e anéis de desgaste do corpo substituíveis, com sistema de regulação de velocidade montado no motor. Com KSB SuPremE, um motor de relutância síncrono sem íman (excepção: os tamanhos dos motores de 0,55 kW/0,75 kW com 1500 rpm são fornecidos com ímanes permanentes) da classe de eficiência IE4/IE5 em conformidade com a norma IEC TS 60034-30-2:2016, para funcionamento com um sistema de variação de frequência de tipo KSB PumpDrive 2 ou KSB PumpDrive 2 Eco sem sensores de posição do rotor. Pontos de fixação do motor em conformidade com a norma EN 50347, dimensões do invólucro de acordo com a norma DIN V 42673 (07-2011). Versão com protecção antideflagrante disponível.
HGM/HGM-S
Bomba multicelular horizontal, dividida radialmente, lubrificada com o produto bombeado, de vários estágios com impulsores radiais, funcionamento axial e radial de entrada única.
MegaCPK
Bomba com corpo de voluta, horizontal, dividida transversalmente com construção processual, com impulsor radial, de fluxo simples, de estágio único, de acordo com as normas DIN EN ISO 5199, dimensões em conformidade com a norma DIN EN ISO 2858, complementada por diâmetros nominais DN25 e ≥DN200, com variedades de vedação e materiais, também disponível com veio molhado e espaço de vedação cónica. Versão com protecção antideflagrante disponível.
Movitec
Bomba centrífuga de alta pressão vertical, de estágios múltiplos, com flanges de aspiração e de pressão opostas com igual diâmetro (versão em linha) e construção monobloco para o accionamento. Com KSB SuPremE, um motor de relutância síncrono sem íman (excepção: os tamanhos dos motores de 0,55 kW/0,75 kW com 1500 rpm são fornecidos com ímanes permanentes) da classe de eficiência IE4/IE5 em conformidade com a norma IEC TS 60034-30-2:2016, para funcionamento no sistema de controlo da rotação de tipo KSB PumpDrive 2 ou KSB PumpDrive 2 Eco sem codificador de posição do rotor. Pontos de fixação em conformidade com a norma EN 50347, substâncias de revestimento em conformidade com a norma DIN V 42673 (07-2011). Versão com protecção antideflagrante disponível.
Multitec
Bomba centrífuga horizontal ou vertical multi-estágio, multicelular, em versão de base ou em bloco, com flange de aspiração axial ou radial, impulsores radiais fundidos e sistema de regulação de velocidade montado no motor. Versão com protecção antideflagrante disponível.
RDLO
Bomba com corpo de voluta dividida axialmente instalada na horizontal ou vertical, de estágio único, com impulsor radial de dupla entrada, flanges de acordo com DIN, EN ou ASME.
PumpDrive 2/PumpDrive 2 Eco
Inversor de frequência com refrigeração automática e uma estrutura modular que possibilita uma alteração contínua da velocidade de rotação de motores de relutância síncronos e assíncronos através de sinais analógicos padrão, do bus de campo ou da unidade de controlo. O auto-arrefecimento do PumpDrive permite a montagem no motor, na parede ou num quadro eléctrico. Controlo de até 6 bombas sem um controlador adicional.
PumpMeter
Aparelho para a monitorização do funcionamento de uma bomba. Trata-se de um sensor de pressão inteligente para bombas com indicação no local dos valores de medição e dos dados de funcionamento. Este estabelece o perfil de carga da bomba, com o objetivo de, caso seja necessário, assinalar os potenciais de otimização para o aumento da eficiência energética e disponibilidade. O aparelho é composto por dois sensores de pressão e um visor. O PumpMeter é fornecido de fábrica totalmente montado e com a parametrização para a respectiva bomba. Este é ligado através de um conector de ficha M12 e está pronto a funcionar.
