섬유 산업
섬유 기술의 모든 프로세스를 개선하는 KSB 제품

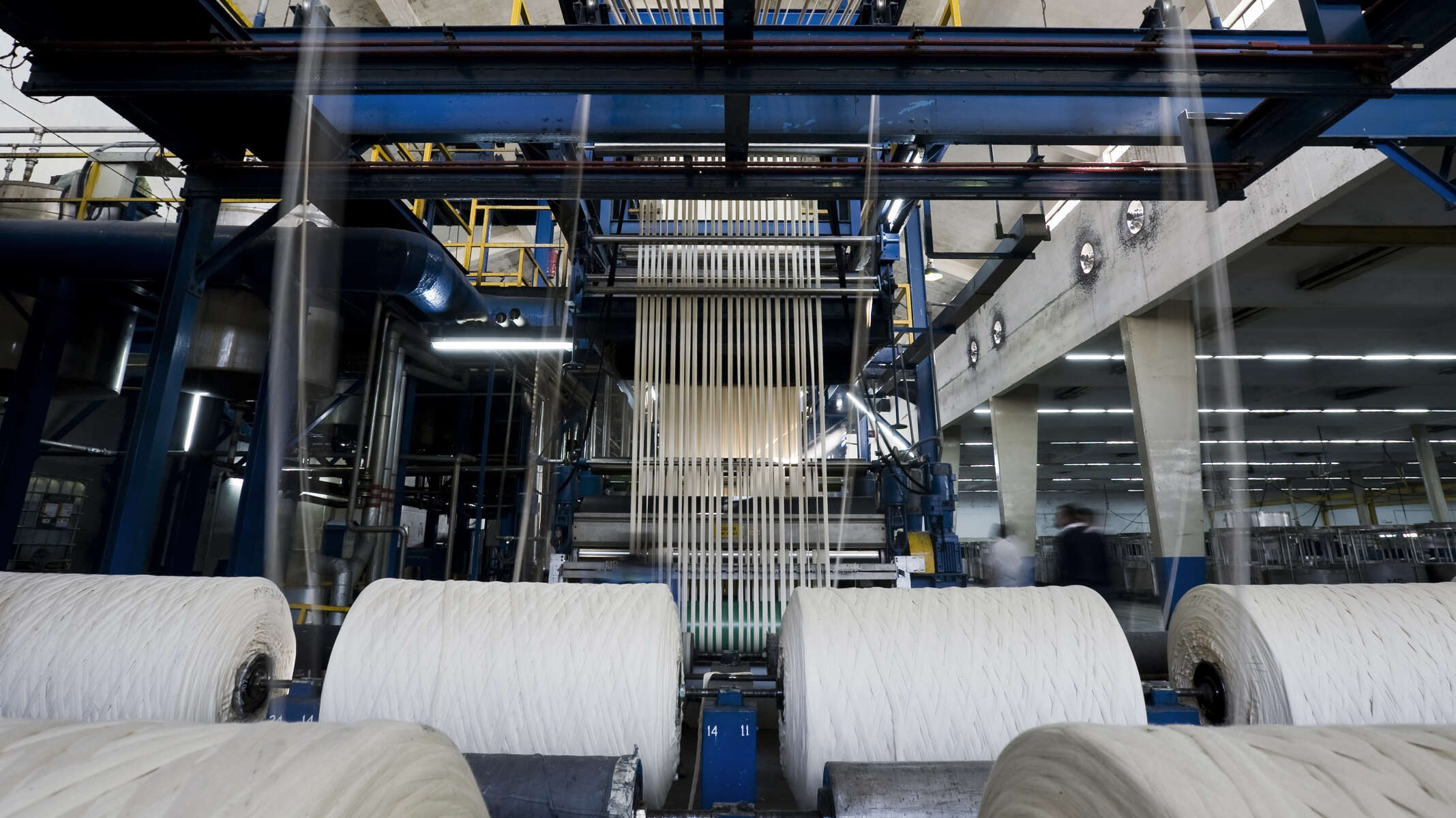

섬유 산업에서 방직 섬유는 다량의 물과 에너지를 사용하여 제조 및 가공됩니다. 이를 위해서는 KSB의 펌프와 같이 혁신적이고 효율적인 제품이 필요합니다.
매우 까다로운 섬유 산업 분야의 요구 사항
자랑할 만한 장점을 제공하는 KSB의 제품
표준 이상의 것을 제공하는 섬유 산업용 KSB 펌프
또한 KSB의 제품은 장기적으로 보다 효율적이고 안전한 작동을 가능하게 하는 특수 제어 기술을 탑재하고 있습니다.
섬유 제조를 위한 KSB 펌프의 하이라이트는 표준 화학 펌프인 MegaCPK입니다. 이 펌프는 수많은 표준의 기초로 간주됩니다. 특히 자극성 유체를 펌핑하는 데 적합합니다. MegaCPK는 또한 에너지 효율성, 다양한 버전 및 작동 신뢰성이 특징입니다.
KSB는 섬유 가공 분야에서 다년간의 경험과 전문성을 바탕으로 혁신적인 제품과 포괄적인 서비스 솔루션을 제공합니다.
MegaCPK
Horizontal radially split volute casing pump in back pull-out design, with radial impeller, single-entry, single-stage, to DIN EN ISO 5199, dimensions to DIN EN ISO 2858, complemented by nominal diameters DN25 and ≥DN200, in large range of material and seal variants; also available as a variant with "wet" shaft and conical seal chamber. ATEX-compliant version available.
Movitec
Multistage vertical high-pressure centrifugal pump in ring-section design with suction and discharge nozzles of identical nominal diameters arranged opposite to each other (in-line design), close-coupled. With KSB SuPremE, a magnetless synchronous reluctance motor (exception: motor sizes 0.55 kW / 0.75 kW with 1500 rpm are designed with permanent magnets) of efficiency class IE4/IE5 to IEC TS 60034-30-2:2016, for operation on a KSB PumpDrive 2 or KSB PumpDrive 2 Eco variable speed system without rotor position sensors. Motor mounting points in accordance with EN 50347, envelope dimensions in accordance with DIN V 42673 (07-2011). ATEX-compliant version available.
Multitec
Multistage horizontal or vertical centrifugal pump in ring-section design, long-coupled or close-coupled, with axial or radial suction nozzle, cast radial impellers and motor-mounted variable speed system. ATEX-compliant version available.
Etanorm/Etanorm MyFlow/Etanorm Pro
Single-stage volute casing pump in back pull-out design, with ratings and main dimensions to EN 733, with IEC-compatible power drive system comprising PumpDrive 2 and KSB SuPremE® motor or PumpDrive 3 (efficiency class IE4/IE5 to IEC TS 60034-2-3:2016) and motor-integrated frequency inverter. The pump is designed with replaceable casing wear rings, closed radial impeller with multiply curved vanes, single mechanical seal or double mechanical seals to EN 12756, shaft equipped with replaceable shaft protecting sleeve in the shaft seal area. The back pull-out design allows the coupling, bearing brackets and impeller to be dismantled without the need to disconnect the pump casing from the piping. Motor mounting points in accordance with IEC 60072, envelope dimensions in accordance with DIN V 42673 (07-2011). ATEX-compliant version available. Well ahead of the ErP Directive's efficiency requirements.
Etanorm SYT
Volute casing pump for horizontal installation, back pull-out design, single-stage, with ratings and dimensions to EN 733, radially split volute casing with integrally cast pump feet, replaceable casing wear rings, closed radial impeller with multiply curved vanes, single mechanical seal to EN 12756, double mechanical seal to EN 12756, drive-end bearings: rolling element bearings, pump-end bearings: plain bearings, with magnetless KSB SuPremE motor (exception: motor sizes 0.55 kW / 0.75 kW with 1500 rpm are designed with permanent magnets) of efficiency class IE4/IE5 and PumpDrive variable speed system; ATEX-compliant version available.
