CK 800, CK 1000 and Ama-Porter CK waste water pump stations for the drainage of buildings

Our pump stations know how to handle pressure.

Whether rainwater, grey water or waste water containing faeces: For projects surrounding pumped drainage we offer a broad range of different, powerful pump stations, so we can find an optimum solution for your application.

All pump stations are available as single-pump or dual-pump systems. It's your choice: Rapidly available standard products or a solution customised to your requirements. We are here to assist you.

A comparison of our waste water pump stations for buildings services


AmaPorter CKPumpstationCK 800CK 1000

Pump type series installed

Ama-Porter


Amarex NS

Amarex

Ama-Porter

Ama-Porter

Control system

Float switch

Pneumatic or
bubbler control

Pneumatic or
bubbler control

Installation depth

1700 – 2500 mm

1820 – 2700 mm

1700 – 2500 mm

Flow rate Q

≤ 40 m³/h

≤ 22 m³/h

≤ 40,3 m³/h

Head H

≤ 16 m

≤ 46 m

≤ 37,2 m

Discharge side

DN 50 & 65

DN 32 & 40

DN 50 & 65

ATEX

-

+ / -

+ / -

CK 800 Pump Station/CK 1000 Pump Station

CK 800 Pump Station/CK 1000 Pump Station
Documents

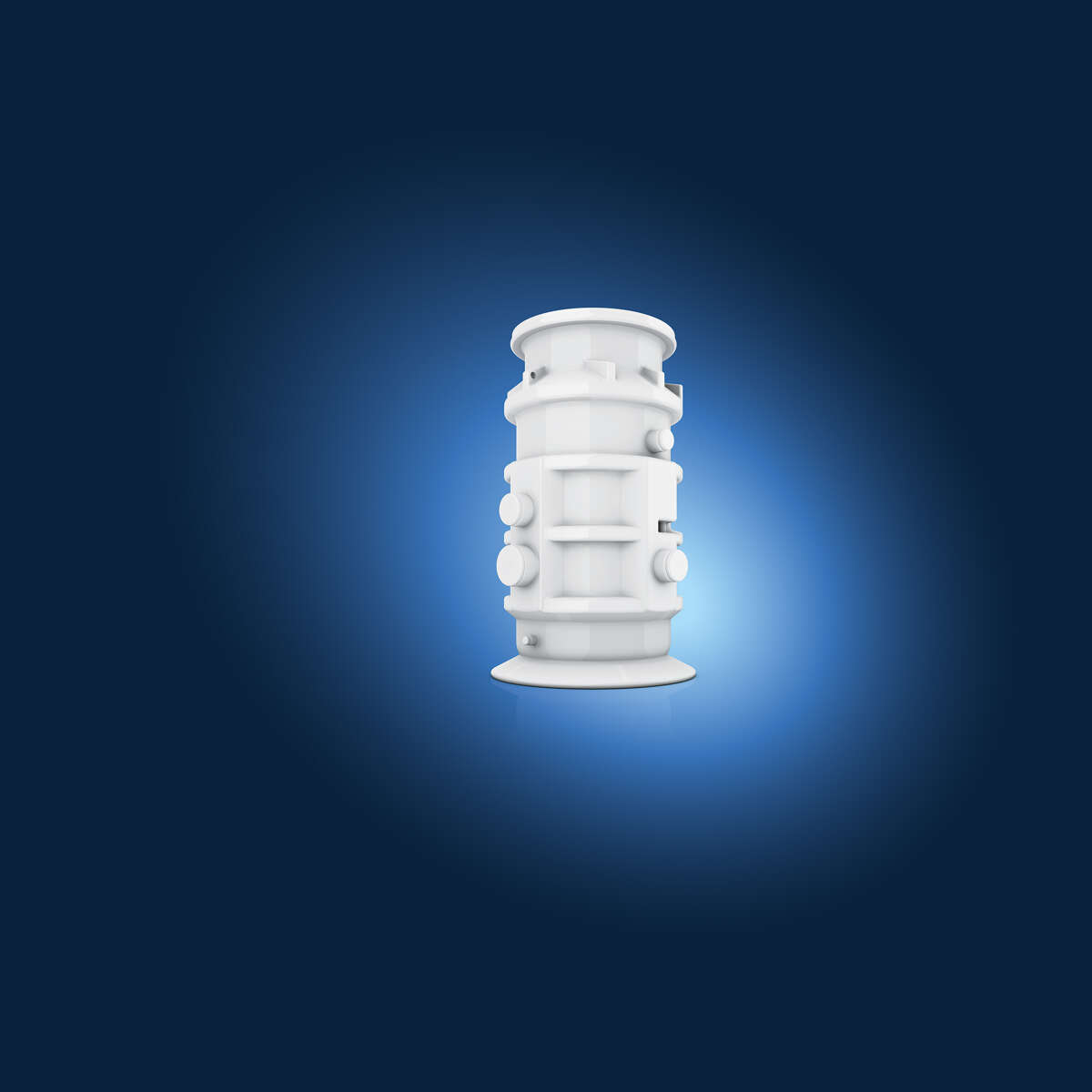

Single-pump station / dual-pump station as ready-to-connect package system, with PE-LLD (polyethylene) collecting tank for buried installation. Equipped with either one or two submersible waste water pumps of type Amarex N S (explosion-proof or non-explosion-proof) or AmaPorter (non-explosion-proof). Tank design to DIN 1986-100 and EN 752/EN 476.

Details

Control modules that won't let you stand in the rain

For simple rainwater applications of the Ama-Porter CK pump station, KSB's MSE/MSD switchgear is usually sufficient. For more demanding applications and special requests or requirements, we recommend the powerful LevelControl Basic 2 type series. It offers a large number of sensor and feature options – and it is perfectly matched to our range of pump stations.

Eye looking over a large city

KSBase Consult Building

The KSBase Consult Building selection program is a support tool especially for building services consultants which provides relevant data, graphs, calculations and typical tenders. It allows you to quickly and easily find the right pump and valve for your project.
