BOA-H Globe valve

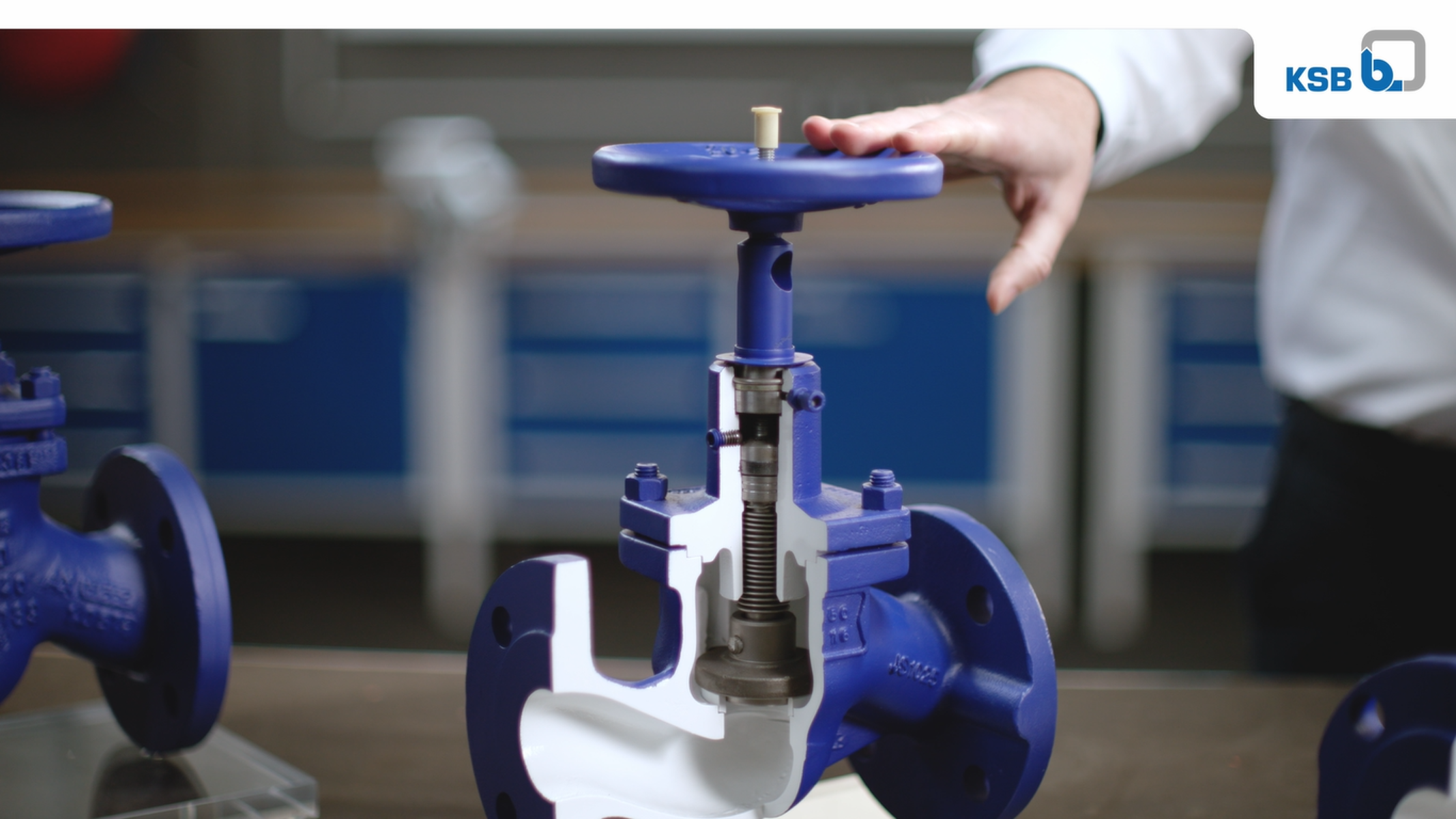

Globe valve BOA-H

Bellows-type globe valve to DIN/EN with flanged ends, with on/off disc or throttling plug, standard position indicator with colour coding for identification of valve design, replaceable valve disc; bellows protected when valve is in fully open position; seat/disc interface made of wear and corrosion resistant chrome steel or chrome nickel steel.
See all documents and downloads

Main Applications

  • Hot-water heating systems
  • Air-conditioning systems
  • Boiler feed applications
  • Boiler recirculation

Technical Data

Nominal pressure
PN 16, PN 25
Max. nominal size
DN 350
Max. allowed fluid temperature
350 °C

Reliable shut-off with the BOA-H energy-saving valve

• Low heat losses by easy-to-insulate bonnet

• Confined bellows protected from pressure surges

• High operating comfort: Position indicator with travel stop and locking device outside the insulation

• Optimum start-up and throttling due to standard throttling plug up to DN 100 (seat-guided V-port plug optionally available for all valve sizes to meet maximum throttling requirements)

Your KSB contact: We’re here to support you

Do you need any assistance finding the right material number?
We’ll soon provide a list so you can directly place your purchase order.
Meanwhile please contact our support:

Your KSB contact : We’re here to support you

Benefits

  • High operating comfort at no extra charge: position indicator with travel stop and locking device outside the insulation. Valve disc position can be checked at any time.
  • Optimum start-up and throttling due to standard throttling plug up to DN 100 (seat-guided V-port plug optionally available for all valve sizes to meet maximum throttling requirements).
  • When the valve is fully open, the bellows is confined within the valve body, protected from pressure surges.

Technical Data

Function
Shut off/control flow
Connection type
Flange
Design concept Drive
With handwheel
Casing material
EN-GJL-250,
EN-GJS-400-18-LT
Nominal pressure
PN 16,
PN 25
Max. nominal size
DN 350
Min. nominal size
DN 15
Max. allowed fluid temperature
350 °C
Min. allowed fluid temperature
-10 °C
Valve body type
Angle valve with flanged ends,
Straight-way vlv w.flngd ends

Sectional Drawings
