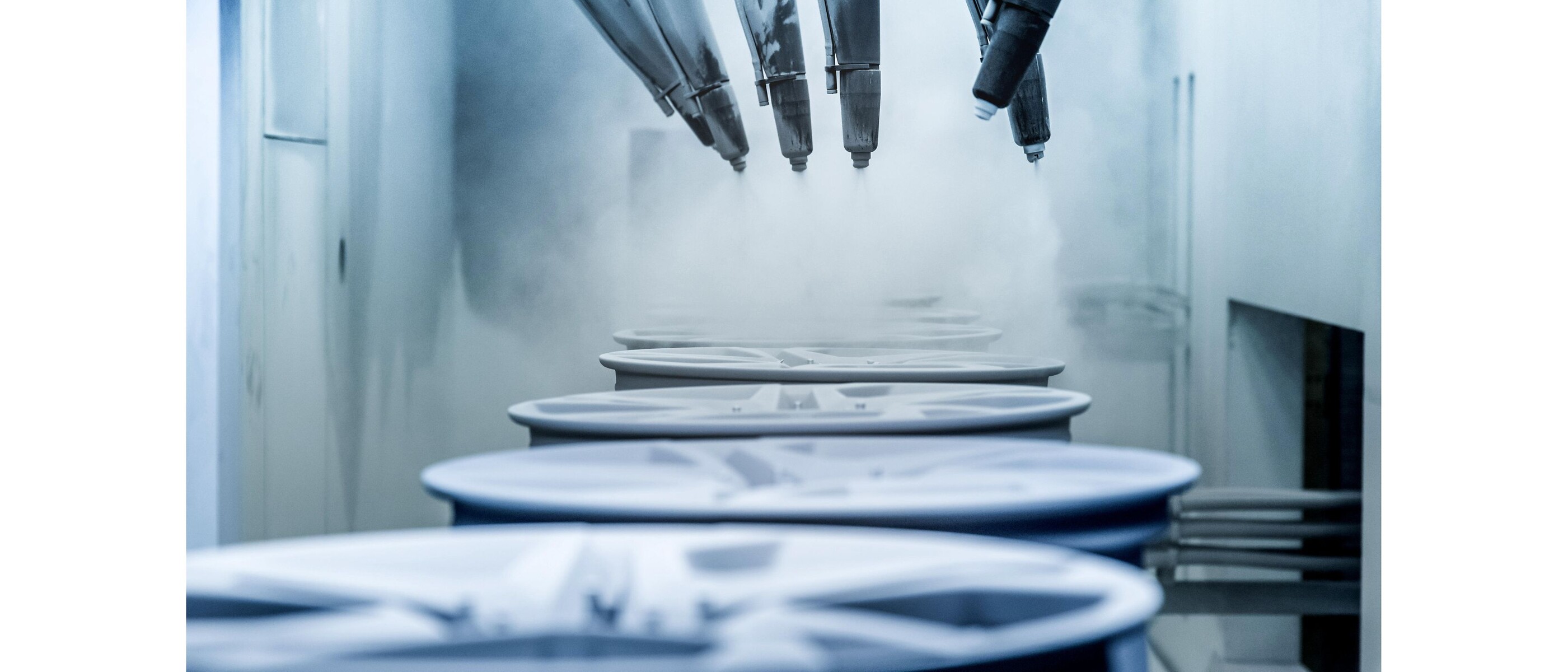

Surface treatment of car rims

Surface Treatment Technology

Surface treatment well thought out

KSB is a specialist in the field of surface technology, offering products perfected for multiple applications. Their high level of quality ensures processes are secure and reliable.

Anything but superficial: the challenges of surface treatment systems

Surface treatment often involves aggressive and corrosive fluids – for example in wet chemical plants for printed circuit board production or in electroplating which uses acidic or alkaline processes. Tough conditions and an uncompromising operating environment place considerable demands on the components employed. Pumps and valves must be able to withstand these stresses in a wide variety of processes – and guarantee trouble-free, reliable operation at all times. At the same time, operating costs must stay under control.

The highest product quality for maximum process reliability

Whether they are specialists or all-rounders, all KSB products for surface treatment systems ensure your processes are smooth, reliable and low on maintenance.
As well as offering numerous application-specific advantages, KSB system solutions, valves and pumps for surface treatment are also cost-effective. Using KSB automation products such as PumpDrive or MyFlow can minimise the number of different pump sizes required. The result is substantial savings in spare parts and energy consumption.
In addition, FluidFuture allows you to further optimise the energy efficiency of your plant and significantly reduce operating costs.
KSB also works closely with industry customers and engineering contractors in surface treatment technology, meaning that you stand to benefit from comprehensive consulting expertise.

KSB products can handle any surface treatment task

Thanks to extremely durable materials and innovative technology, KSB pumps and valves can withstand the aggressive and corrosive fluids used in surface treatment systems, whether in cleaning and washing plants, paint shops, degreasing baths, pre-treatment, ultrafiltrate supply or disposal processes. They can be used in both immersion and spray applications.
Whether employed for degreasing, rinsing, activating, passivating, phosphating or electrocoating: Powerful pumps and materials combined with optimum control and monitoring of the pump system enable KSB to ensure that the fluid handled is available at the right time, at the right place, in the right quantity and at the right pressure.
By paying attention to every detail and utilising materials specially developed in-house for surface treatment applications, KSB is thus able to meet the exacting demands placed on surface treatment systems by aggressive and corrosive fluids.

Our portfolio

KSB offers a wide range of products for surface treatment systems:

  • In-line pumps
  • Standardised/close-coupled pumps
  • Process pumps
  • Pumps for solids-laden fluids
  • Self-priming pumps
  • High-pressure pumps
  • Various drive systems
  • Variable speed systems
  • Immersion pumps

Applications include

  • Cleaning plants/washing plants
  • Rinsing (spray and immersion)
  • Degreasing baths
  • Activation/phosphating/passivation
  • Electrocoating (anodic and cathodic)
  • Supplying fully desalinated water/recirculation fluid/ultrafiltrate
  • Disposal processes

Your benefits

  • Optimum pumps and solutions for every application
  • Trouble-free, reliable processes, even with demanding fluids
  • Guaranteed consistent process quality
  • Gentle handling due to efficiently designed impeller geometries
  • Energy-efficient processes via KSB system products
  • Low life cycle costs
  • Comprehensive support including maintenance and repair
  • KSB is close at hand worldwide: in more than 170 service centres with over 3,000 service specialists

Find suitable pumps for surface treatment

KSB offers pumps and valves for numerous surface treatment applications – and also for pumping aggressive and corrosive fluids.

VIEW OUR PRODUCT PORTFOLIO

Etanorm V

Etanorm V
Documents

Single-stage volute casing pump for vertical installation in closed tanks under atmospheric pressure, with ratings to EN 733.

Details

Etanorm

Etanorm
Documents

Horizontal volute casing pump, single-stage, with ratings and main dimensions to EN 733, long-coupled, back pull-out design, with replaceable shaft sleeves / shaft protecting sleeves and casing wear rings, with motor-mounted variable speed system. With KSB SuPremE, a magnetless synchronous reluctance motor (exception: motor sizes 0.55 kW / 0.75 kW with 1500 rpm are designed with permanent magnets) of efficiency class IE4/IE5 to IEC TS 60034-30-2:2016, for operation on a KSB PumpDrive 2 or KSB PumpDrive 2 Eco variable speed system without rotor position sensors. Motor mounting points in accordance with EN 50347, envelope dimensions in accordance with DIN V 42673 (07-2011). ATEX-compliant version available.

Details

Etabloc

Etabloc
Documents

Single-stage close-coupled volute casing pump, with ratings to EN 733, with replaceable shaft sleeve and casing wear rings, with motor-mounted variable speed system. With KSB SuPremE, a magnetless synchronous reluctance motor (exception: motor sizes 0.55 kW / 0.75 kW with 1500 rpm are designed with permanent magnets) of efficiency class IE4/IE5 to IEC TS 60034-30-2:2016, for operation on a KSB PumpDrive 2 or KSB PumpDrive 2 Eco variable speed system without rotor position sensors. Motor mounting points in accordance with EN 50347, envelope dimensions in accordance with DIN V 42673 (07-2011). ATEX-compliant version available.

Details

Movitec VCI

Movitec VCI
Documents

Multistage vertical high-pressure immersion pump for installation on tanks or platforms.

Details

Find suitable valves for surface treatment

ISORIA 10/16

ISORIA 10/16
Documents

Centred-disc butterfly valve with ISO 5211 compliant square shaft end, sealed by elastomer liner, with lever or manual gearbox, pneumatic, electric or hydraulic actuator. Wafer-type body (T1), semi-lug body (T2), full-lug body (T4) or U-section body with flat faces (T5). Body types T2 and T4 are suitable for downstream dismantling and dead-end service with counterflange. Connections to EN, ASME, JIS.

Details

SISTO-20

SISTO-20
Documents

Weir-type diaphragm valve to DIN/EN with flanged ends, threaded socket ends or socket weld ends, in straight-way pattern; shut-off and sealing to atmosphere by supported and confined diaphragm; body with coating or lining, position indicator with integrated stem protection. All moving parts are separated from the fluid by the diaphragm. Maintenance-free.

Details

KE

KE
Documents

Centred-disc butterfly valve with ISO 5211 compliant square shaft end and PFA liner. With lever, manual gearbox, pneumatic or electric actuator. With wafer-type body (T1), full-lug body (T4) or U-section body with raised faces (T6). EN, ASME, JIS connections possible.

Details
