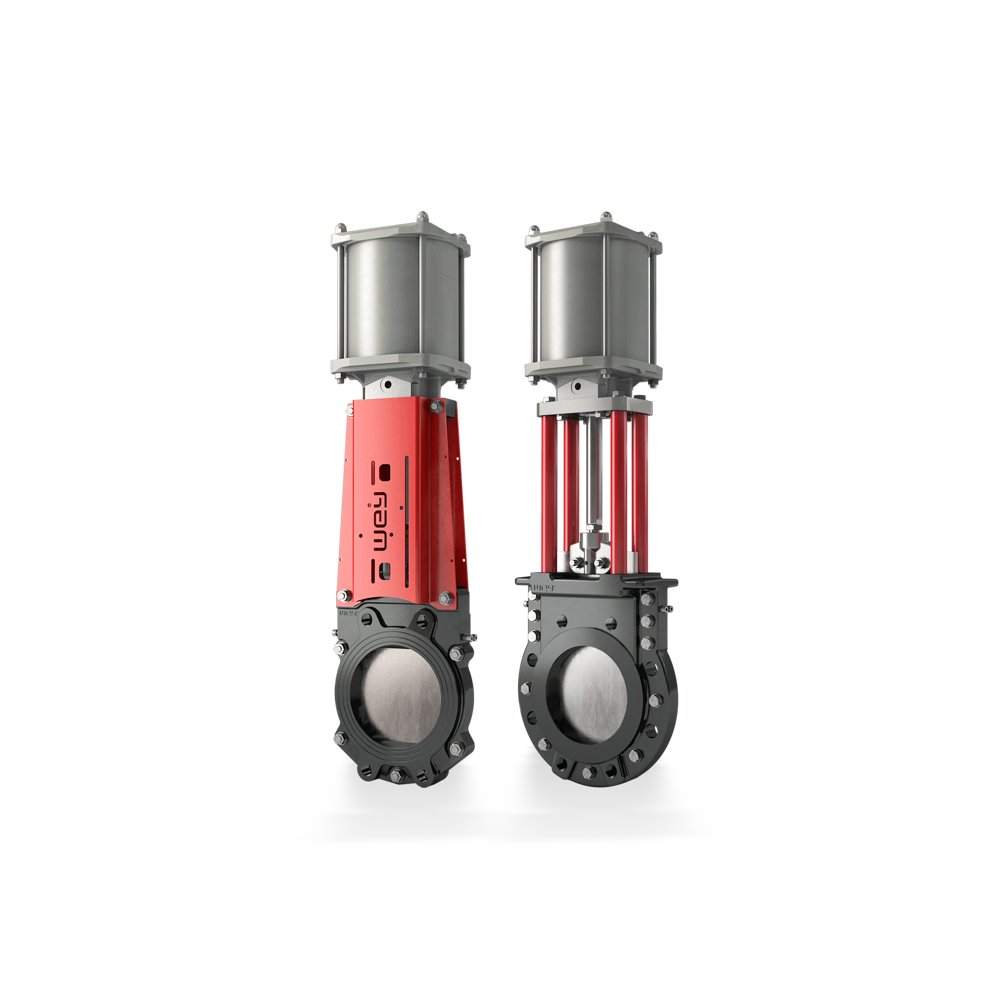

Wey Sistag Gate valve

Gate valve Wey Sistag

Equipped with the unique Wey sealing system, our knife gate valves are suitable for the most demanding of applications. They can handle a variety of differential pressure scenarios and abrasive and corrosive materials, not to mention extreme temperatures. They are available in different materials and come with multiple options.
See all documents and downloads

Main Applications

  • Biogas plants
  • Chemical industry
  • Beverage industry and food industry
  • Petrochemical industry

Technical Data

Nominal pressure
PN 10, PN 16
Max. nominal size
DN 2000
Max. allowed fluid temperature
250 °C

Your KSB contact: We're here to support you

Do you need any assistance finding the right material number?
We’ll soon provide a list so you can directly place your purchase order.
Meanwhile please contact our support:

Tel: + 46 31 7202495


Your KSB contact : We’re here to support you

Benefits

  • Bi-directional seal
  • Self cleaning design.
  • Unique and safe seal system adjustable under operation.

Technical Data

Function
Shut off/control flow
Connection type
Installation between flanges,
Flange
Design concept Drive
With electric actuator,
With handwheel,
With pneumatic actuator
Casing material
EN-GJL-250,
EN-GJS-400-15,
1.4408[]UNS J92600
Nominal pressure
PN 10,
PN 16
Max. nominal size
DN 2000
Min. nominal size
DN 50
Max. allowed fluid temperature
250 °C
Min. allowed fluid temperature
-20 °C
