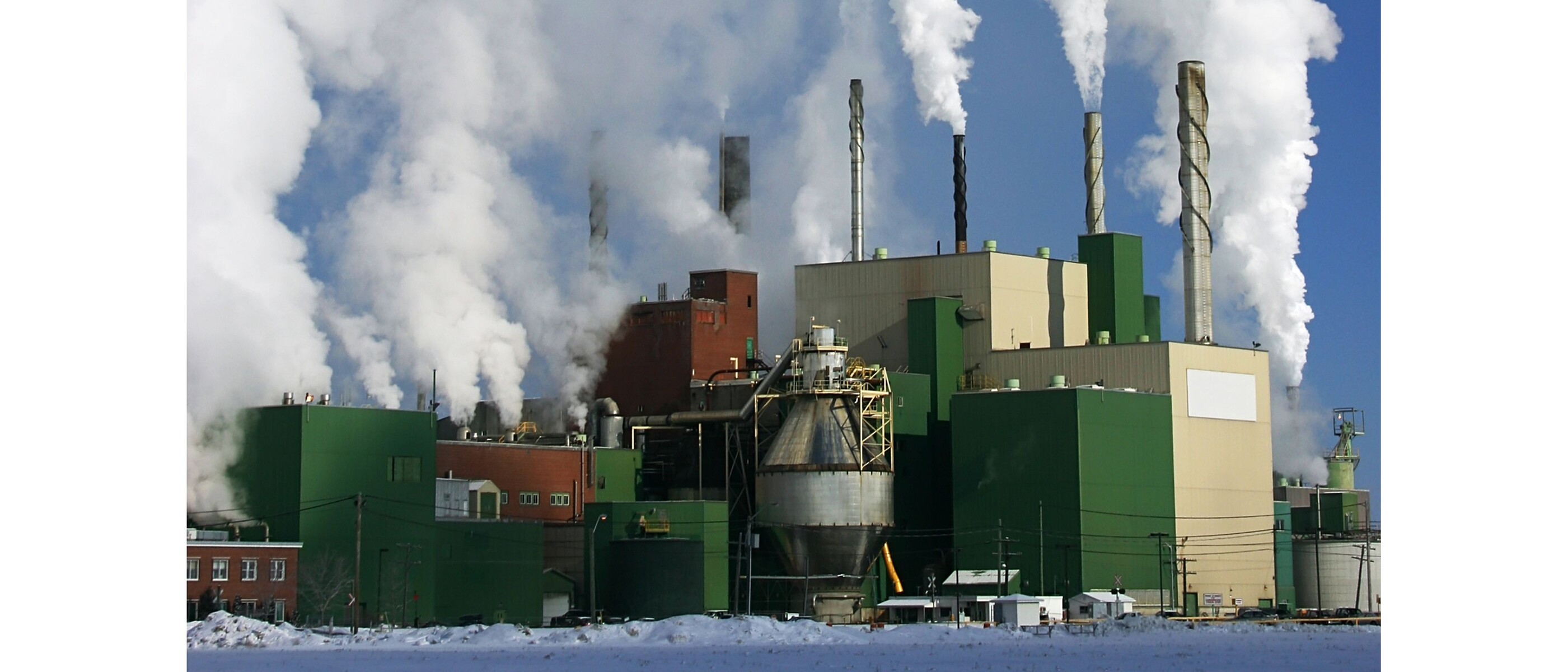

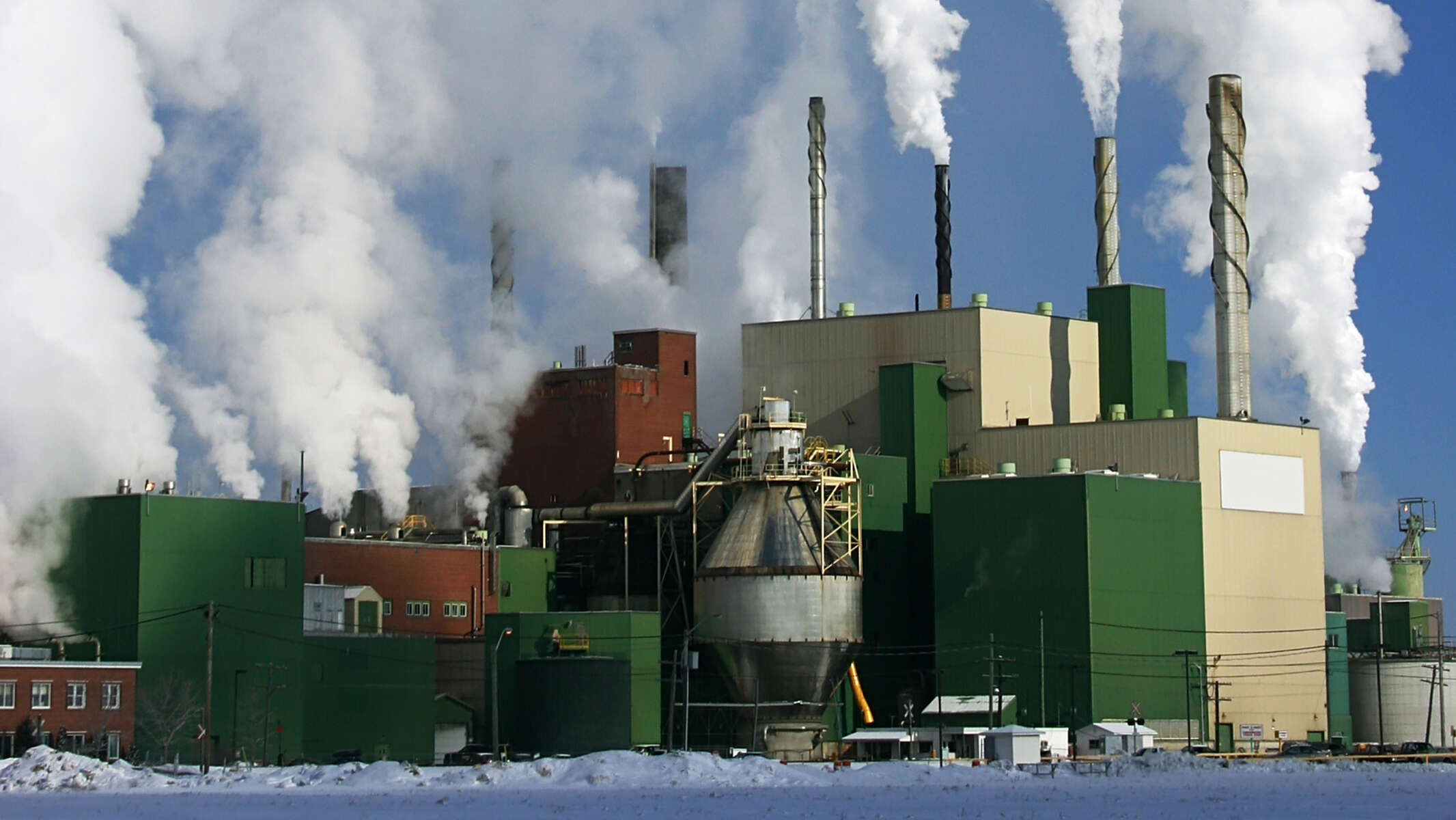

Pulp production and paper production

The paper and pulp industry at its best – with pumps from KSB

In particular for secondary processes associated with paper production and the pulp industry, such as the supply of heat, KSB offers a wide range of products and many years of know-how.

Special situations need special solutions

The paper and pulp industry is currently facing many challenges: globalisation is increasing competition and digitalisation is driving down the use of paper as a medium. Added to this are rising energy costs and stricter safety requirements.

To master these challenges, solutions are needed that can reduce operating costs – while simultaneously increasing productivity, energy efficiency and operating reliability.

Our solutions for paper production and pulp production

KSB offers an extensive product portfolio in particular for the secondary processes involved in the paper and pulp industry. One of the most important applications in pulp production is the heating of rollers since pressure, temperature and residence time play a crucial role in the quality and consistency of the end product.

Here and also for heating dryer systems, robust and high-efficiency thermal oil pumps are used, for example Etanorm SYT. The steam needed for steeping and boiling is generated in steam boilers using boiler feed pumps such as Movitec or Multitec.
Depending on the size of the systems, HG or HGM boiler feed pumps are used.

Know-how makes all the difference in paper and pulp production

When it comes to paper production and pulp production, as a system provider with decades of experience, KSB is able to draw on extensive expertise in the area of special process pumps that play an important supporting role. KSB offers the very highest of safety standards – on request with mechanical seals in tandem arrangement, leakage sensor and specially adapted hydraulic systems featuring the highest levels of efficiency. As an additional option, an intelligent variable speed system can be fitted to minimise energy costs.

With KSB, you not only benefit from comprehensive know-how and systems perfectly designed to suit your applications and requirements, you also have an international service network that can quickly provide you with support whenever you need it.

Our portfolio

KSB offers a wide range of products for paper and pulp production:

Standardised chemical pumps
Process pumps
Drainage pumps / waste water pumps
Submersible motor pumps
Pumps for solids-laden fluids
High-pressure pumps
Various drive systems
Variable speed systems
Pulp pumps
Steel pumps

Applications include

Raw materials processing and treatment, paper refinement
Treatment of paper with chemical substances
Mechanical wood pulp preparation
Sulphite or sulphate processes for pulp production
Dissolving of fibres and adding of fillers and auxiliary constituents
Transport of suspensions of various densities and types with specific flow characteristics

Your benefits

Products perfectly tailored to your individual needs
An extensive product portfolio for a wide range of applications
Compliance with strict safety standards
Highest operating reliability without downtimes
Cost-effective processes thanks to durable, maintenance-friendly products
Increase in productivity through intelligent drives
Special expertise thanks to decades of experience
International service network for quick and professional support

Find suitable pumps for pulp and paper production

KSB offers a broad range of high-quality products to meet the technical requirements in paper production.

View our product portfolio

Etanorm/Etanorm MyFlow/Etanorm Pro

Documents

Single-stage volute casing pump in back pull-out design, with ratings and main dimensions to EN 733, with IEC-compatible power drive system comprising PumpDrive 2 and KSB SuPremE® motor or PumpDrive 3 (efficiency class IE4/IE5 to IEC TS 60034-2-3:2016) and motor-integrated frequency inverter. The pump is designed with replaceable casing wear rings, closed radial impeller with multiply curved vanes, single mechanical seal or double mechanical seals to EN 12756, shaft equipped with replaceable shaft protecting sleeve in the shaft seal area. The back pull-out design allows the coupling, bearing brackets and impeller to be dismantled without the need to disconnect the pump casing from the piping. Motor mounting points in accordance with IEC 60072, envelope dimensions in accordance with DIN V 42673 (07-2011). ATEX-compliant version available. Well ahead of the ErP Directive's efficiency requirements.

Details

Find suitable valves for pulp and paper production

DANAÏS 150

Documents

Double-offset butterfly valve with ISO 5211 compliant square shaft end, with plastomer seat (also in fire-safe design), metal seat or elastomer seat (FKM [VITON R] or NBR [nitrile]). Lever or manual gearbox, pneumatic, electric or hydraulic actuator. Body made of nodular cast iron, cast steel, stainless steel or duplex stainless steel (254 SMO). Wafer-type body (T1), full-lug body (T4), T4 suitable for downstream dismantling and dead-end service with counterflange. Connections to EN, ASME or JIS. Fire-safe design tested and certified to API 607. Fugitive emissions performance tested and certified to EN ISO 15848-1. ATEX-compliant version in accordance with Directive 2014/34/EU.

Details

Illustration of the phases of a product life cycle: Consultation and analysis, commissioning, operation and repair

Service at KSB SupremeServ means being fully looked after

KSB SupremeServ offers you a comprehensive range of services and spare parts for pumps, valves and other equipment – including for products from other manufacturers – from face-to-face consultation to installation, commissioning, maintenance and repair. More than 3500 specialists in over 190 service centres worldwide are available around the clock, seven days a week. Concentrate on your core business – and let us take care of the rest.

View our service portfolio
