Surface Treatment Technology

Surface treatment well thought out

KSB is a specialist in the field of surface technology, offering products perfected for multiple applications. Their high level of quality ensures processes are secure and reliable.

Anything but superficial: the challenges of surface treatment systems

Surface treatment often involves aggressive and corrosive fluids – for example in wet chemical plants for printed circuit board production or in electroplating which uses acidic or alkaline processes. Tough conditions and an uncompromising operating environment place considerable demands on the components employed. Pumps and valves must be able to withstand these stresses in a wide variety of processes – and guarantee trouble-free, reliable operation at all times. At the same time, operating costs must stay under control.

The highest product quality for maximum process reliability

Whether they are specialists or all-rounders, all KSB products for surface treatment systems ensure your processes are smooth, reliable and low on maintenance.

As well as offering numerous application-specific advantages, KSB system solutions, valves and pumps for surface treatment are also cost-effective. Using KSB automation products such as PumpDrive or MyFlow can minimise the number of different pump sizes required. The result is substantial savings in spare parts and energy consumption.
In addition, FluidFuture allows you to further optimise the energy efficiency of your plant and significantly reduce operating costs.

KSB also works closely with industry customers and engineering contractors in surface treatment technology, meaning that you stand to benefit from comprehensive consulting expertise.

KSB products can handle any surface treatment task

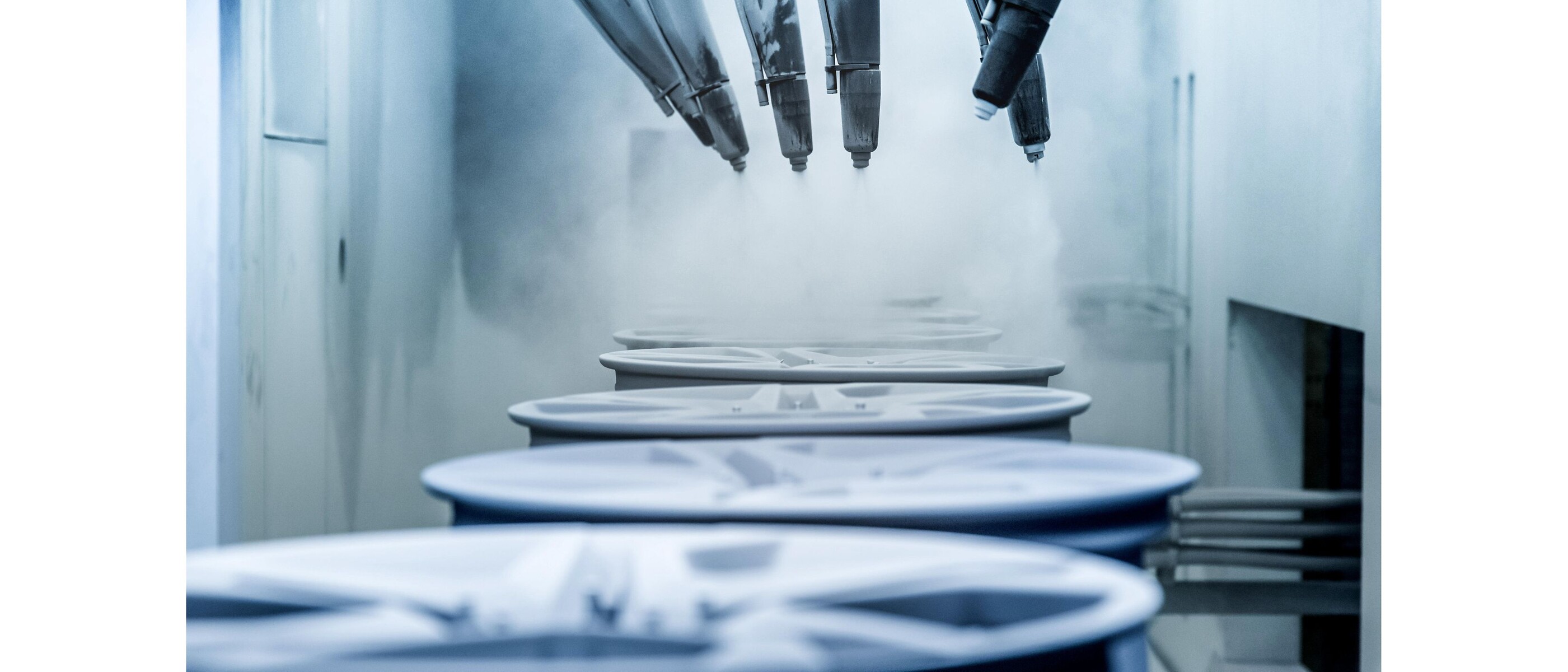

Thanks to extremely durable materials and innovative technology, KSB pumps and valves can withstand the aggressive and corrosive fluids used in surface treatment systems, whether in cleaning and washing plants, paint shops, degreasing baths, pre-treatment, ultrafiltrate supply or disposal processes. They can be used in both immersion and spray applications.

Whether employed for degreasing, rinsing, activating, passivating, phosphating or electrocoating: Powerful pumps and materials combined with optimum control and monitoring of the pump system enable KSB to ensure that the fluid handled is available at the right time, at the right place, in the right quantity and at the right pressure.

By paying attention to every detail and utilising materials specially developed in-house for surface treatment applications, KSB is thus able to meet the exacting demands placed on surface treatment systems by aggressive and corrosive fluids.

Our portfolio

KSB offers a wide range of products for surface treatment systems:

In-line pumps
Standardised/close-coupled pumps
Process pumps
Pumps for solids-laden fluids
Self-priming pumps
High-pressure pumps
Various drive systems
Variable speed systems
Immersion pumps

Applications include

Cleaning plants/washing plants
Rinsing (spray and immersion)
Degreasing baths
Activation/phosphating/passivation
Electrocoating (anodic and cathodic)
Supplying fully desalinated water/recirculation fluid/ultrafiltrate
Disposal processes

Your benefits

Optimum pumps and solutions for every application
Trouble-free, reliable processes, even with demanding fluids
Guaranteed consistent process quality
Gentle handling due to efficiently designed impeller geometries
Energy-efficient processes via KSB system products
Low life cycle costs
Comprehensive support including maintenance and repair
KSB is close at hand worldwide: in more than 170 service centres with over 3,000 service specialists

Find suitable pumps for surface treatment

KSB offers pumps and valves for numerous surface treatment applications – and also for pumping aggressive and corrosive fluids.

VIEW OUR PRODUCT PORTFOLIO

Etanorm/Etanorm MyFlow/Etanorm Pro

Documents

Single-stage volute casing pump in back pull-out design, with ratings and main dimensions to EN 733, with IEC-compatible power drive system comprising PumpDrive 2 and KSB SuPremE® motor or PumpDrive 3 (efficiency class IE4/IE5 to IEC TS 60034-2-3:2016) and motor-integrated frequency inverter. The pump is designed with replaceable casing wear rings, closed radial impeller with multiply curved vanes, single mechanical seal or double mechanical seals to EN 12756, shaft equipped with replaceable shaft protecting sleeve in the shaft seal area. The back pull-out design allows the coupling, bearing brackets and impeller to be dismantled without the need to disconnect the pump casing from the piping. Motor mounting points in accordance with IEC 60072, envelope dimensions in accordance with DIN V 42673 (07-2011). ATEX-compliant version available. Well ahead of the ErP Directive's efficiency requirements.

Details

Etabloc/Etabloc Pro/Etabloc MyFlow

Documents

Single-stage volute casing pump in close-coupled design, with ratings to EN 733, with IEC-compatible power drive system comprising PumpDrive 2 and KSB SuPremE® motor or PumpDrive 3 (efficiency class IE4/IE5 to IEC TS 60034-2-3:2016) and motor-integrated frequency inverter. Shaft fitted with a replaceable shaft sleeve in the shaft seal area. Volute casing and casing cover with replaceable casing wear rings. Volute casing with integrally cast pump feet for variants B, C and S. Motor mounting points in accordance with IEC 60072, envelope dimensions in accordance with DIN V 42673 (07-2011). ATEX-compliant version available. Well ahead of the ErP Directive's efficiency requirements.

Details

Find suitable valves for surface treatment

Illustration of the phases of a product life cycle: Consultation and analysis, commissioning, operation and repair

Service at KSB SupremeServ means being fully looked after

KSB SupremeServ offers you a comprehensive range of services and spare parts for pumps, valves and other equipment – including for products from other manufacturers – from face-to-face consultation to installation, commissioning, maintenance and repair. More than 3500 specialists in over 190 service centres worldwide are available around the clock, seven days a week. Concentrate on your core business – and let us take care of the rest.

View our service portfolio

Inspection service

KSB’s inspection service provides regular pump inspection and pump maintenance to ensure the reliable operation and increased availability of your system.
