BOA-H Globe valve

Globe valveBOA-H

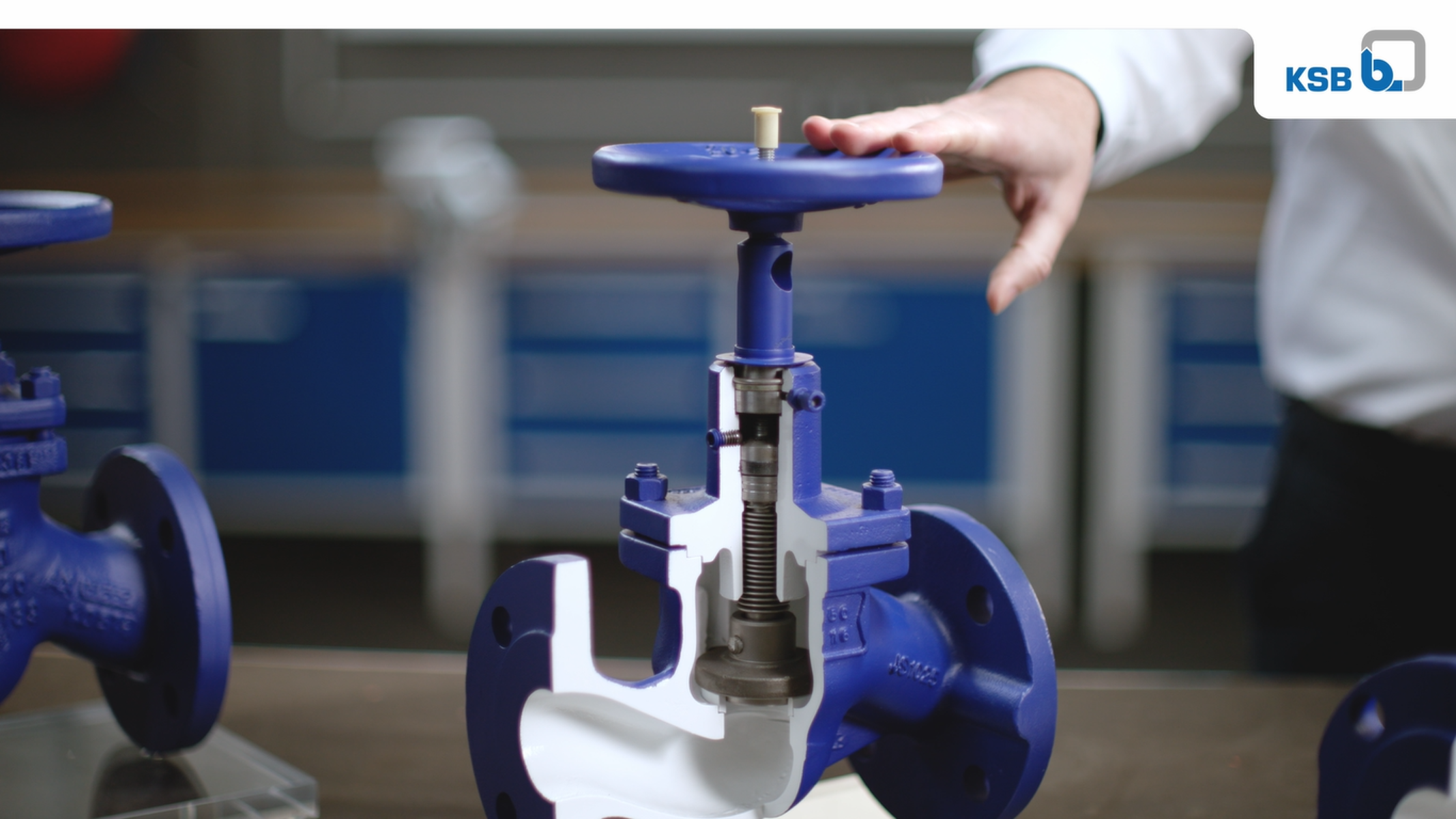

Bellows-type globe valve to DIN/EN with flanged ends, with on/off disc or throttling plug, standard position indicator with colour coding for identification of valve design, replaceable valve disc; bellows protected when valve is in fully open position; seat/disc interface made of wear and corrosion resistant chrome steel or chrome nickel steel.
See all documents and downloads

Technical Data

  • Nominal pressurePN 16, PN 25
  • Max. nominal sizeDN 350
  • Max. allowed fluid temperature350 °C

Material number list – BOA-H

192 products
Material number
Price
BOA-H ECK PN 16 DN 15 5.1301 DKPN 16DN 15Angle patternThrottling plugWith handwheelWithout3.2 kg48875003
Loading...
BOA-H ECK PN 16 DN 15 5.1301 KKPN 16DN 15Angle patternV-port plugWith handwheelWithout3.2 kg48014328
Loading...
BOA-H ECK PN 16 DN 20 5.1301 DKPN 16DN 20Angle patternThrottling plugWith handwheelWithout4 kg48875004
Loading...
BOA-H ECK PN 16 DN 20 5.1301 KKPN 16DN 20Angle patternV-port plugWith handwheelWithout4 kg48014329
Loading...
BOA-H ECK PN 16 DN 25 5.1301 DKPN 16DN 25Angle patternThrottling plugWith handwheelWithout4.8 kg48875005
Loading...

Benefits

  • High operating comfort at no extra charge: position indicator with travel stop and locking device outside the insulation. Valve disc position can be checked at any time.
  • Optimum start-up and throttling due to standard throttling plug up to DN 100 (seat-guided V-port plug optionally available for all valve sizes to meet maximum throttling requirements).
  • When the valve is fully open, the bellows is confined within the valve body, protected from pressure surges.

Technical Data

  • FunctionShut off/control flow
  • Connection typeFlange
  • Design concept DriveWith handwheel
  • Casing materialEN-GJL-250,
    EN-GJS-400-18-LT
  • Nominal pressurePN 16,
    PN 25
  • Max. nominal sizeDN 350
  • Min. nominal sizeDN 15
  • Max. allowed fluid temperature350 °C
  • Min. allowed fluid temperature-10 °C
  • Valve body typeAngle valve with flanged ends,
    Straight-way vlv w.flngd ends
