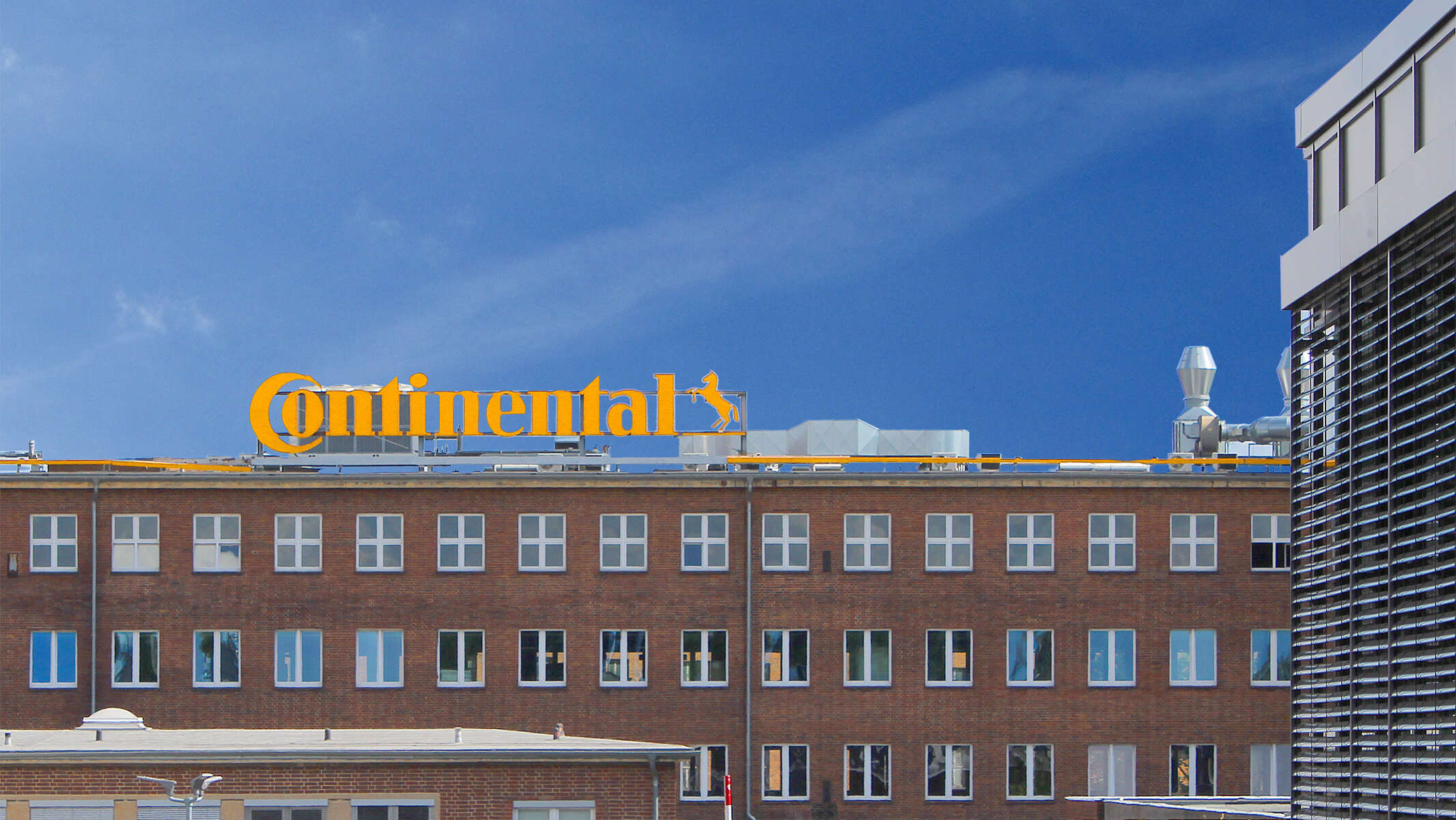

Firmengebäude der Continental AG in Hannover von außen

Jul 23, 20256 min read

Accolade for an intelligent monitoring tool

In times of increasingly professionalised cyber attacks, the importance of secure network components is growing exponentially. This is one reason why internet-enabled products are thoroughly scrutinised by customers before they are used. KSB’s cloud-based KSB Guard was examined by the rubber and plastics specialist ContiTech, and passed the validation with flying colours. This achievement almost overshadowed the fact that the main contract involved the refurbishment and modernisation of an entire cooling water system.

Renewing the cooling water supply system

2017 saw ContiTech invite tenders for the renewal of the cooling water supply system at its Hanover Vahrenwald factory. The company planned to refurbish and modernise the cooling water system in the entire factory, as well as making it energy-efficient. The work included the renewal of pumps, motors, frequency inverters, shut-off and non-return valves; the installation of prefabricated piping; the construction of pump foundations and baseplates; and the removal of the old pump sets.

ContiTech

Hanover-based ContiTech is one of the world’s largest manufacturers of rubber and plastic products outside the tyre industry and is part of Continental. In 40 countries, the technology company’s 46,000 employees develop and produce functional parts, components and systems for almost all sectors of industry and commerce and combine them with individual services.

Intelligent, reliable and secure monitoring solution

It was planned to implement an intelligent and above all reliable and secure monitoring solution to continuously monitor the operation of all pumps and to report potential irregularities in good time before a failure actually occurs. A further challenge was the fact that production at the Vahrenwald factory runs almost around the clock, only stopping for few national holidays. The tender specified that work on the pump systems had to be carried out during ongoing operation without any downtime in production.

Experience and highest safety standards

When submitting its quotation, KSB was able to refer to its many years of experience and a full range of services as a single-source supplier. A further advantage is that KSB operates a global network of service partners. In its subsidiary Dynamik-Pumpen GmbH, KSB has a reliable and experienced service company available locally and able to provide services around the clock if needed at a later stage.

When drawing up its detailed design implementation plans, Dynamik-Pumpen GmbH went beyond the stipulations set out in the tender documents. After receiving the order, KSB’s specialists made an extensive analysis of the old system. This yielded further important details which complemented ContiTech’s well thought-out specifications and enabled KSB’s experts to maximise the reliability, security and energy efficiency of the entire system while staying within the budget.

As to the choice of pumps, KSB decided to opt for the high-performance Etanorm, the world’s best-selling standardised water pump. It is known for its impressive efficiency and extremely robust and durable motors. Etanorm was supplemented with PumpDrive, a frequency inverter that dynamically adapts pumps’ output and speed to actual demand, making them extremely energy-efficient and reliable to operate. In addition, Etanorm features extremely smooth running characteristics which met ContiTech’s requirement to significantly reduce noise levels on site.

Pumps, pipes and valves of ContiTech AG’s cooling system — Etanorm pumps and new piping

In order to meet the requirement of removing old and installing new equipment without interrupting production, KSB supplied large prefabricated piping sections that could be integrated with the pumps, valves and other components already on site to replace the old equipment.

All areas at ContiTech are subject to strict regulations and guidelines. But having to meet demand criteria is nothing new for KSB pumps and valves, and these products are generally well ahead of their time in terms of meeting exacting standards.

The OK for the installation of KSB Guard came immediately. The security measures integrated into the KSB Cloud and all hardware components proved 100% convincing because they guarantee a level of security comparable with online banking by using maximum data encryption and actively blocking potential external attacks.

But what makes KSB Guard so unique? The innovative and easy-to-install monitoring system includes sensors that detect irregularities in KSB pumps and third-party products before a malfunction occurs so that major damage and failures can be reliably avoided. Registered users can access all pump status data (e.g. temperature, vibrations and load condition) around the clock via a web portal and are immediately notified by e-mail if any deviations occur. The system operator benefits from predictable and less frequent downtimes, better maintenance strategies and significantly reduced operating costs for a relatively modest investment.

Pumps, piping and valves of ContiTech AG’s cooling system — Etanorm pumps with attached KSB Guard

Location: Hannover, Germany

Client: ContiTech AG, Continental

Employees: ca. 46,000

Industry sector: Manufacturer of rubber and plastic products

Project year: 2017

Project data:

6 x Etanorm 100-80-315 with 45kW synchronous reluctance motor

PumpDrive

KSB Guard

Etanorm/Etanorm MyFlow/Etanorm Pro

Documents

Single-stage volute casing pump in back pull-out design, with ratings and main dimensions to EN 733, with IEC-compatible power drive system comprising PumpDrive 2 and KSB SuPremE® motor or PumpDrive 3 (efficiency class IE4/IE5 to IEC TS 60034-2-3:2016) and motor-integrated frequency inverter. The pump is designed with replaceable casing wear rings, closed radial impeller with multiply curved vanes, single mechanical seal or double mechanical seals to EN 12756, shaft equipped with replaceable shaft protecting sleeve in the shaft seal area. The back pull-out design allows the coupling, bearing brackets and impeller to be dismantled without the need to disconnect the pump casing from the piping. Motor mounting points in accordance with IEC 60072, envelope dimensions in accordance with DIN V 42673 (07-2011). ATEX-compliant version available. Well ahead of the ErP Directive's efficiency requirements.

Details

PumpDrive 2/PumpDrive 2 Eco

Documents

Modular self-cooling frequency inverter that enables continuously variable speed control of asynchronous and synchronous reluctance motors by means of analog standard signals, a field bus or the control panel. As PumpDrive is self-cooling, it can be mounted on a motor, on the wall or in a control cabinet. Up to six pumps can be controlled without needing an additional controller.

Details

KSB Guard

Documents

The smart and comprehensive monitoring service for pumps and other rotating machinery, available 24/7 and also for non-KSB pumps. Benefit from predictive maintenance with KSB: comprehensive transparency, increased availability, enhanced operating reliability and efficient operation (of fixed-speed pumps). Important operating data such as vibrations, temperature, operating hours and load condition (of fixed-speed pumps) can be accessed via KSB Guard, anytime and from anywhere. In addition, deviations from normal operation trigger immediate notifications via the KSB Guard web portal and/or app. The experts at the KSB Monitoring Centre also provide support in analysing causes.

Details
