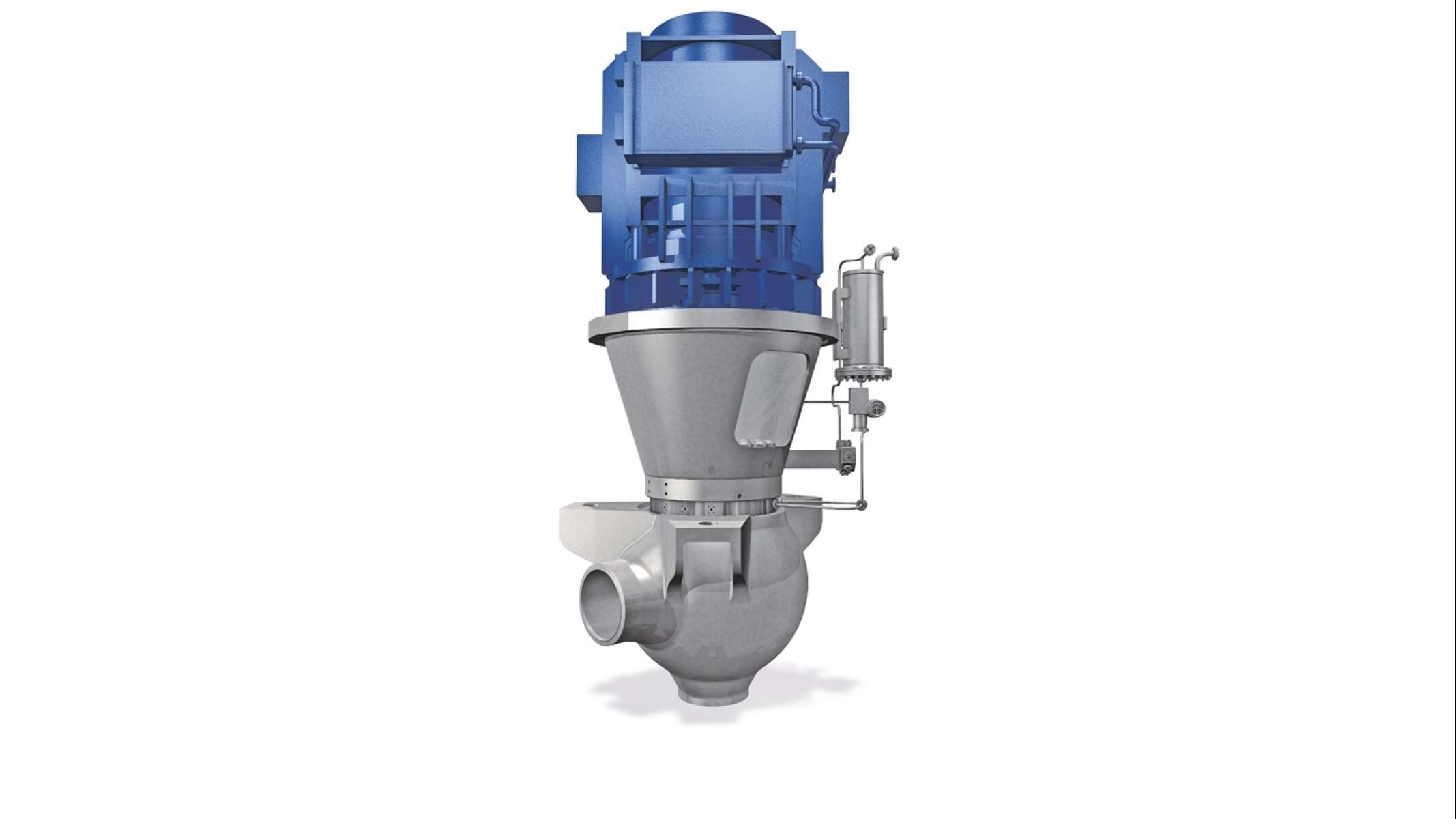

Product Introduction RSR
Reactor coolant pump for pressurized heavy water reactor
Function
Reactor coolant pump.
Design
Vertical, single-stage reactor coolant pump RCP, with cast double volute or annular casing, supported by motor bearing.
Applications
Reactor coolant recirculation in nuclear power plants (PWR, PHWR, BWR).
Overview of technical data
| Type of bearing | Plain bearings |
| Drive frequency | 50 Hz / 60 Hz |
| Type of drive | Electric motor |
| Type of lubrication | Oil / product lubrication |
| Max. permissible fluid temperature | 350 °C |
| Standard | ASME Sect. III; KTA; RCC-M |
| Type of casing | Spherical casing |
| Maximum head | 140m |
| Shaft seal type | Mechanical seal; hydrodynamic seal |
| Main applications | Energy |
| Maximum discharge-side pressure | 175 bar |
| Maximum flow rate | 40. 000 m³/h |
| Maximum speed of rotation | 1. 800 1/min |
