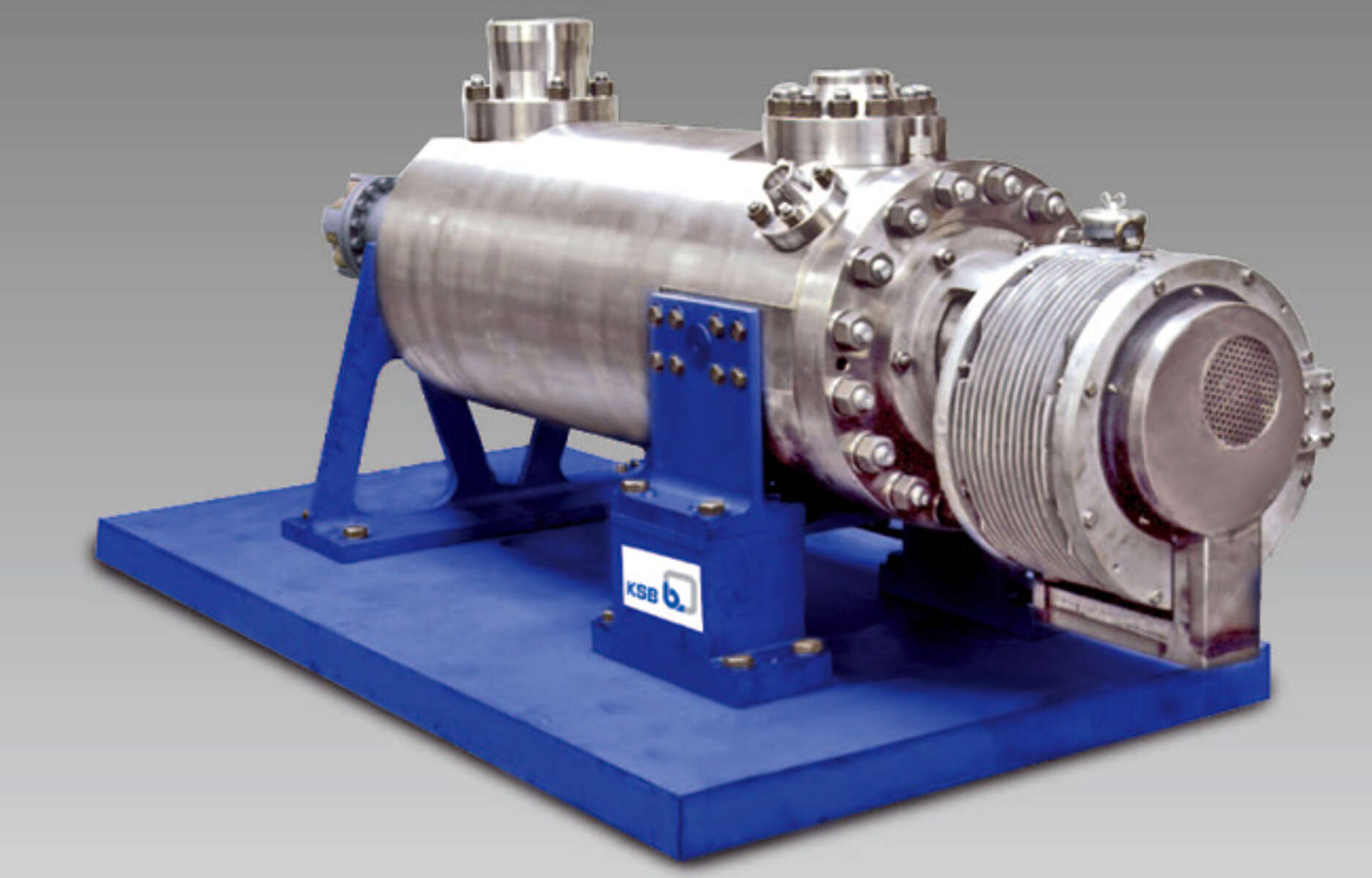

Product Introduction RHM
High-pressure multistage pump
Function
Pump for safety-related and auxiliary systems.
Description
Horizontal, multistage barrel pull-out pump.
Applications
Core flooding, emergency cooling and residual heat removal systems RHRS, chemical and volume control systems CVCS, high-pressure charging, control rod drive systems CRDS, high- and medium-pressure safety injection systems HPSI / LPSI / MHSI / LHSI, emergency feed water systems EFWS, start-up and shutdown feed water systems SSS.
Overview of technical data
| Drive frequency | 50 Hz / 60 Hz |
| Type of coupling | Direct; gear |
| Max. permissible fluid temperature | 180 °C |
| Standard | ASME Sect. III; KTA; RCC-M |
| Maximum head | 2. 100m |
| Installation position | Horizontal |
| Shaft seal type | Mechanical seal |
| Main applications | Energy |
| Maximum discharge-side pressure | 220 bar |
| Maximum flow rate | 300 m³/h |
| Maximum speed of rotation | 8. 000 1/min |
