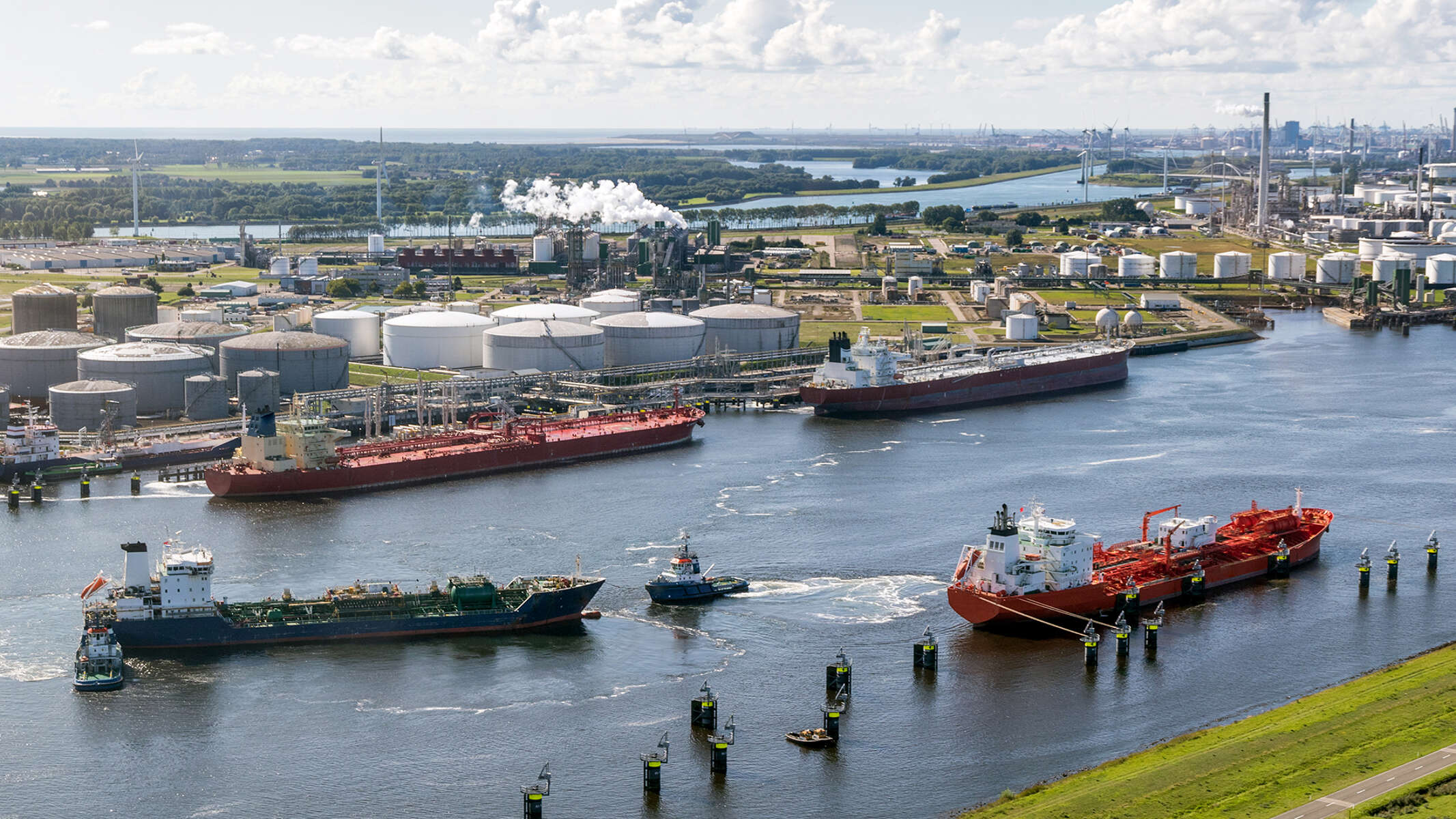

Two barges on a river preparing to dock at a large refinery

Midstream Transport and Storage

Safe, efficient and reliable KSB pumps for the midstream help transfer and store liquid hydrocarbons before sending them down the line.

In the oil and gas industry, the midstream holds it all together. It also places specific demands on pumps. Learn about our versatile midstream portfolio and the advantages of partnering with KSB.

Meet multiple challenges in midstream oil and gas

As a midstream operator, you want your pumps to move your liquid assets safely within your facility and to their final destination. That requires sustained pressure, even over sizeable heads. Flexible flows and pressure ranges are important, too, because of the diversity of transport and storage facilities. Finally, for the health of your workers, the environment and your business, you also want to ensure zero leaks and spills.

KSB transfer and process pumps: powerful, flexible fluid transport, even under pressure

For midstream oil and gas production, KSB transfer and process pumps power the movement of semi-finished and finished liquid hydrocarbons. Whether you’re looking to move midstream assets through transportation and storage networks – or to inland and waterside storage terminals for blending and redistribution, our pumps help you do it powerfully and effectively, with strict containment of fluids at all times.

Choose your flow and pressure: We offer engineered process pumps with broad flow and pressure ranges, so that you can adapt to the diversity of receipt points in the midstream: from pipelines to oil tankers and rail cars, tanker trucks or barges.

The modular design of our CHTR pumps lets you vary performance, even to the extremes: Run them at high pressure and under the extreme loads that come with your business.
Pumps in our RPH series deliver outstanding efficiency and performance, along with a broad flow and pressure range.
Our heavy-duty RPHb/d process pumps are compatible with flanges in all standards, making them ideal for midstream applications.
Finally, our vertical column can-type WKTR/WKB pumps are designed to move hydrocarbons over large heads, even under pressure.

Your all-round partner for midstream pumping solutions: KSB

KSB pumps give you a total-package solution for the diverse requirements of liquid hydrocarbon handling. Because we know your needs, our midstream solutions are made to be efficient, flexible, and safe by design. Our products for the oil and gas industry are engineered to comply with API 610, for heavy-duty performance.

Whenever you need a solution that’s a better fit for your situation, we are also your partner. We have decades of expertise and a proven track record in the transfer and storage markets. So you can talk to us about customised solutions like extra wear-resistant materials or engineered-to-order aggregates. We’re well equipped to cater new and evolving requirements in your industry.

And once you decide on one of our midstream pumping solutions, that’s just the start. We support you at every step of the way, from getting your new pumps up and running to inspections, maintenance, and if necessary, efficient repairs.

Our portfolio

KSB offers a wide range of products for midstream transportation and storage networks:

Engineered process pumps with broad flow and pressure ranges
Standardised chemical pumps with seal-less capability
Utility pumps for water handling/management systems
Pumps for solids-laden fluids
Mechanical seals and seal flush plans
Engineered-to-order aggregates consisting of drives, accessories, instrumentation and controls

Applications include

Batched fluids with regular fluid changeovers of varying densities and viscosities
Repeated intermittent operation to suit downstream delivery requirements
Applying variable system backpressures requiring wide operating range
Stringent emission control to safeguard environment and avoid explosions and/or fires
Regular fluid conditioning to meet product delivery specifications

Your benefits

Flexible and application-specific solutions thanks to a broad product portfolio
Reliable pumping and containment of the most demanding fluids – in compliance with the highest safety standards
Solutions for extreme conditions by employing wear and corrosion resistant materials of construction
Reduced total cost of ownership through innovative technology
Optimised hydraulics to ensure energy-efficient operation
Comprehensive service – from installation and commissioning to inspection, maintenance and on-site repair

Find suitable pumps for your midstream operations

We offer midstream pumps for every challenge. Browse our solutions for transporting and storing hydrocarbons and natural gas.

View our product portfolio

RPH

Documents

Horizontal radially split volute casing pump in back pull-out design, to API 610, ISO 13709 (heavy duty), type OH2, single-stage, with single-suction radial impeller and centreline pump feet; with inducer if required. ATEX-compliant version available.

Details

RPHb/RPHd/RPHbd

Documents

Heavy-duty horizontal radially split between-bearings volute casing pump to API 610, ISO 13709 (heavy duty), type BB2, with radial impellers, single- or double-entry, single- or two-stage design with centreline pump feet. ATEX-compliant version available.

Details

CHTR

Documents

Horizontal radially split multistage high-pressure pumps in between-bearings design, with double casing (barrel-type pumps) to API 610 (ISO 13709), type BB5. First stage optionally available in double-suction design for low NPSH requirements. ATEX-compliant version available.

Details

RPH-V

Documents

Vertical single-stage sump pump to API 610 and ISO 13709 (heavy duty), type VS4, with integral thrust bearing assembly and separate discharge line. ATEX-compliant version available.

Details

WKTR

Documents

Vertically suspended, double-casing, lineshaft, diffuser-type pump with integral thrust bearings and discharge through column pipe in accordance with API 610 / ISO 13709 (VS6). Available in single-stage or multistage configurations and with single suction first-stage impeller.

Details

Find suitable valves for your midstream operations

MIL 41000

Documents

Cage-guided single-ported heavy-duty control valves, high pressure drop capability; noise reduction and anti-cavitation solution available by replacing the standard cage.

Details

MIL 21000

Documents

Top-guided single-ported heavy post-guided control valve for a wide temperature range.

Details

MIL 78000

Documents

Multistage control valve in anti-cavitation design with wear-resistant multistage trim and detachable flow bush / spacer.

Details
