BOA-CVE H Globe valve

Globe valveBOA-CVE H

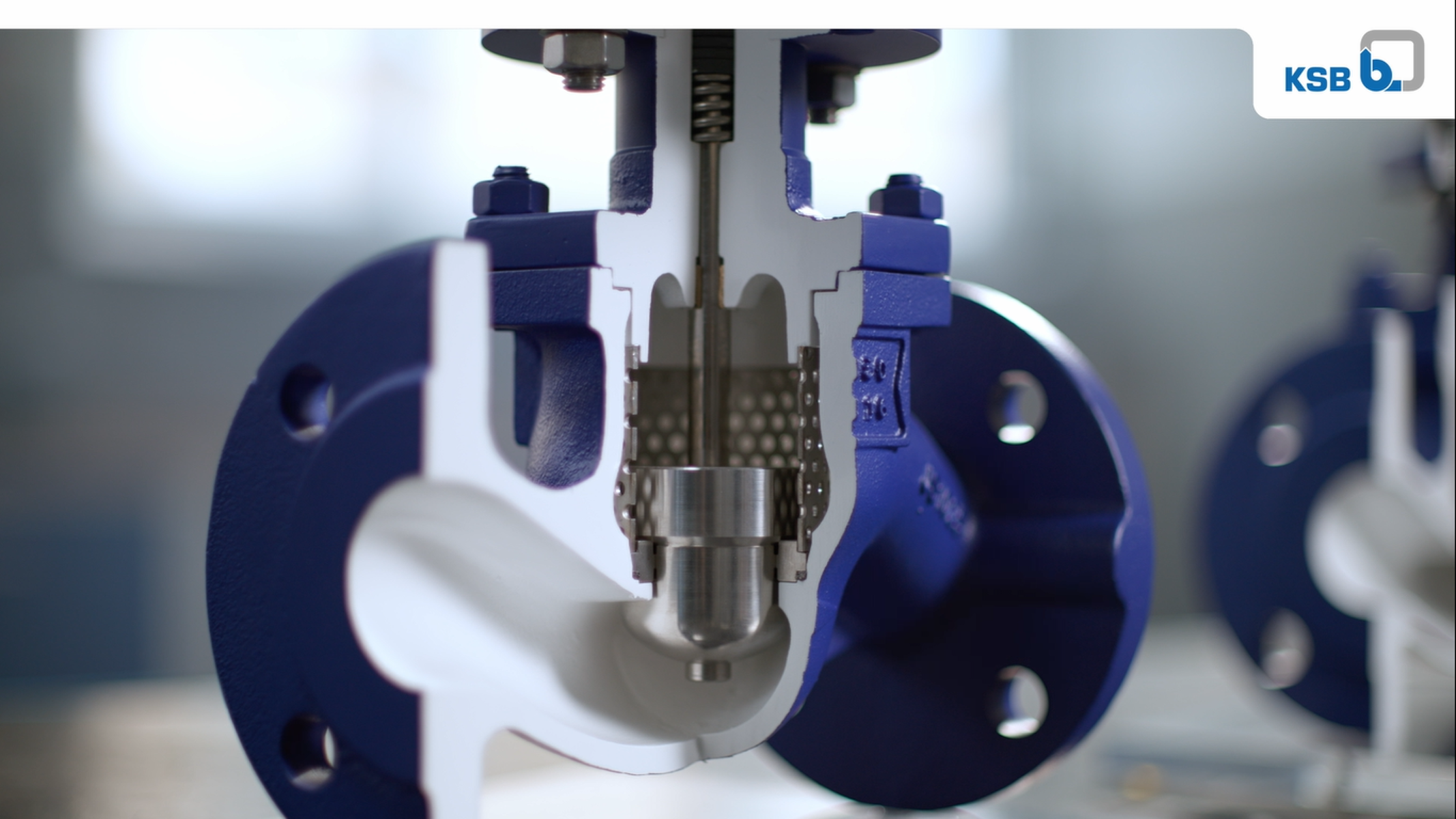

Service-friendly control valve to DIN/EN with flanged ends, either with linear or equal-percentage control characteristic at Kvs values of 0.1 to 630 m³/h and closing pressures of up to 40 bar; all internal parts are easy to replace without special tools, including the reversible seat; noise level reduced by standard two-stage pressure reduction combining a parabolic plug and multi-hole cage; with electric actuator.
See all documents and downloads

Technical Data

  • Nominal pressurePN 16, PN 25, PN 40
  • Max. nominal sizeDN 200
  • Max. allowed fluid temperature450 °C

Your KSB contact: We’re here to support you

Do you need any assistance finding the right material number?
We’ll soon provide a list so you can directly place your purchase order.
Meanwhile please contact our support:

Your KSB contact : We’re here to support you

Benefits

  • Two-stage pressure reduction already integrated as standard to reduce noise emission
  • Optional anti-cavitation design combines supporting cage and perforated plug
  • Easy to adjust to specific control tasks by selecting from various valve disc design (equal-percentage or linear) / seat diameter combinations

Technical Data

  • FunctionShut off/control flow
  • Connection typeFlange
  • Design concept DriveWith electric actuator
  • Mains frequency50 Hz
  • Mains voltage24 V,
    230 V,
    400 V
  • Casing materialEN-GJS-400-18-LT,
    GP240GH+N
  • Nominal pressurePN 16,
    PN 25,
    PN 40
  • Max. nominal sizeDN 200
  • Min. nominal sizeDN 15
  • Max. allowed fluid temperature450 °C
  • Min. allowed fluid temperature-10 °C

Documents

Title
Format
Size
Last change
2-page product description BOA-CVE/CVP H (7525.021_EN)PDF1.583/14/2022
Title
Format
Size
Last change
Declaration of Conformity (0570.8538_EN)PDF0.28/23/2022
Title
Format
Size
Last change
Operating manual EA-C actuators (7525.83_EN)PDF3.053/14/2022
BOA-CVE H (7525.81_EN)PDF4.019/21/2022
Title
Format
Size
Last change
BOA-CVE H (7525.1_EN)PDF2.3810/18/2021
Title
Format
Size
Last change
BOA-CVE H (7525.521_EN)ZIP0.0810/18/2021
