ZRN Swing check valve

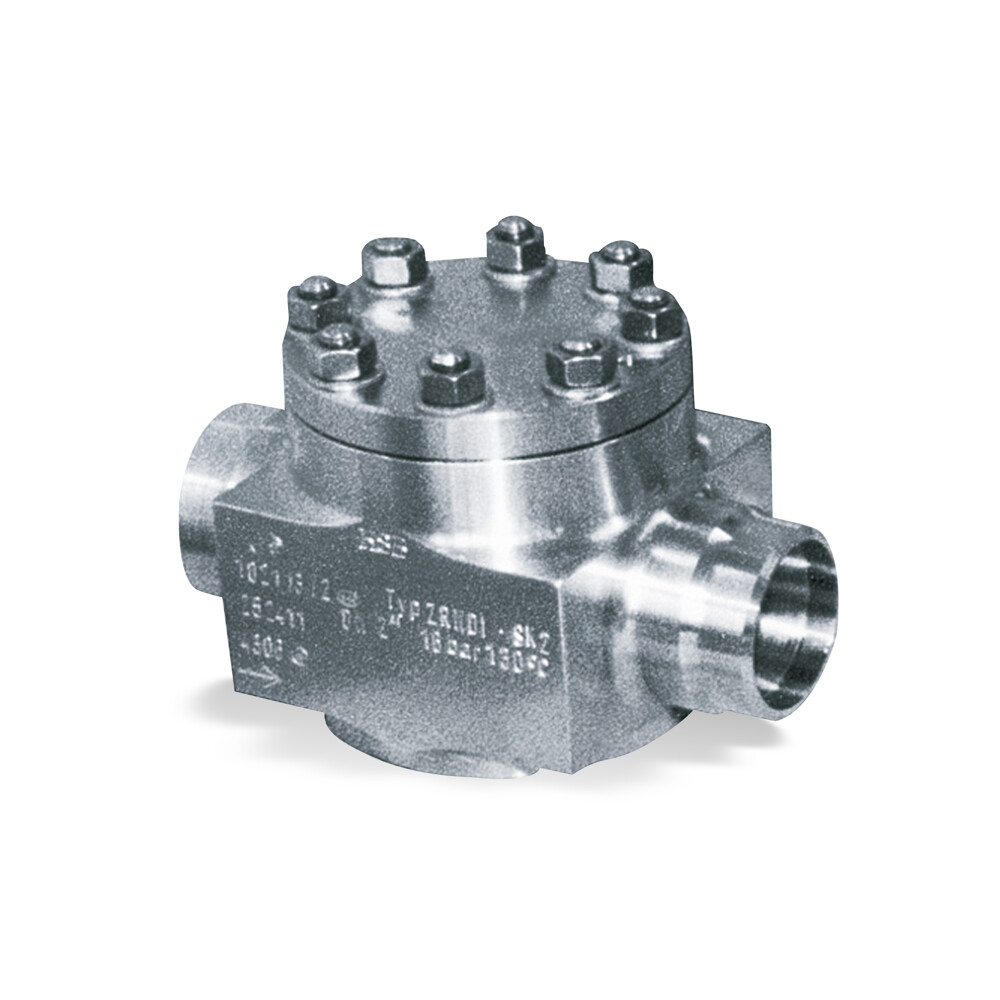

Swing check valve ZRN

Swing check valve for nuclear applications, with butt weld ends, with bolted cover, internally mounted hinge pin, forged body made of steel or stainless steel.

Main Applications

  • Nuclear power stations

Technical Data

Nominal pressure
PN 320, Special
Max. nominal size
DN 600
Max. allowed fluid temperature
365 °C

Your KSB contact: We're here to support you

Do you need any assistance finding the right material number?
We’ll soon provide a list so you can directly place your purchase order.
Meanwhile please contact our support:

Tel: +41 43 210 99 33


Info-ch@ksb.com
Your KSB contact : We’re here to support you

Technical Data

Function
Prevent backflow
Connection type
Butt weld ends
Casing material
P280GH,
P250GH,
SA105,
X6CRNINB18-10,
Z6 CNNB 18-11,
SA182 GRADE F316L
Nominal pressure
PN 320,
Special
Max. nominal size
DN 600
Min. nominal size
DN 50
Max. allowed fluid temperature
365 °C
Min. allowed fluid temperature
-29 °C
Valve body type
Straight-way valve w.weld ends
