UPA S 200 and UPA S 250 well pumps from KSB

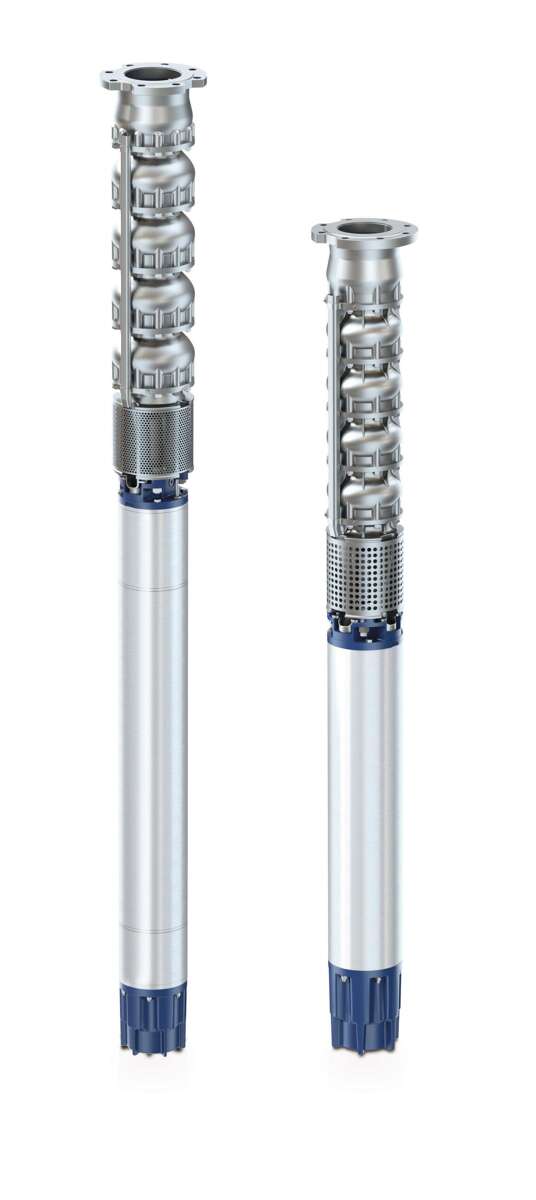

UPA S 200 and UPA S 250 in detail

With the UPA S 200 and UPA S 250 well pumps, KSB offers two powerful and highly efficient units for well diameters from 8 or 10 inches. Both models are available in numerous designs with a range of options – offering you the perfect variant to match your requirements.

Many more benefits, much more UPA!

The models from the UPA pump range are mainly used for drinking water and general water supply, general irrigation / spray irrigation, groundwater management, offshore applications and pressure boosting. Alongside their exceptionally low energy requirements, these pumps impress with outstanding operating reliability, durability and a long motor life:

  • Excellent efficiency thanks to optimised hydraulic systems and smooth surfaces (investment casting)
  • Optimum adjustment to the customer’s operating point thanks to freely configurable number of stages and custom impeller trimming
  • Outstanding corrosion resistance thanks to high-grade stainless steel design
  • Highly resistant to wear thanks to metal casing wear rings and optional SiC plain bearings for handling fluids containing large amounts of sand.
  • Reliable operation thanks to improved lift check valve in anti-blockage design
  • Continuous motor operation thanks to water-lubricated, maintenance-free plain bearing with self-aligning tilting pads
  • Counter thrust bearing for reliably absorbing negative axial thrust
  • Wear protection thanks to mechanical seal in carbon/ceramic or ceramic/ceramic material combination
  • Reliable pressure equalisation system for maximum immersion depths
  • Motors designed for maximum pump input power to prevent overloading

A class of their own – with options to suit all environments

The UPA S 200/250 well pumps are available in various designs and sizes. And our additional options extend their fields of application to cover environments previously unsuitable for well pumps.

UPA with cooling shroud

Option 1: Cooling shroud

For operation at higher water temperatures or in cases of insufficient flow around the pump set, e.g. installation in open water. The cooling shroud generates a flow of water along the motor surface, ensuring reliable and efficient motor cooling. Suitable for vertical and horizontal installation; a suction strainer is optionally available.

UPA with pressure shroud

Option 2: Pressure shroud

For installation in a piping system, e.g. as an alternative to dry-installed pumps. Benefits: The system is maintenance-free (no rolling element bearings), flood-proof (no failure in the event of flooding) and environmentally friendly (no lubricants required), and has a low noise level (no direct sound transmission to the air). Suitable for vertical and horizontal installation

UPA with suction shroud

Option 3: Suction shroud

The suction shroud shifts the suction point further down and is required when the pump is installed at a low immersion depth and/or when the water level drops sharply during operation. The suction shroud prevents the formation of surface vortices and prevents the pump from drawing in air. Allows temporary operation at lowered water level.

UPA with suction shroud and lift check valve

Option 4: Suction shroud with lift check valve

Installation at a low immersion depth with pump set never fully submerged. The additional lift check valve prevents the piping from being drained and enables continuous operation at a lowered water level and reliable re-start after standstill.

UPA S 200 and 250 in all its diversity

Whether connected to a 230 or 1000 Volt power supply, whether equipped with a synchronous or an asynchronous motor, a 200 or a 250 mm pump diameter – well pumps from KSB are available in a wide range of variants. Here is a brief overview.

Discharge nozzle

UPA S 200

G5 (standard), G3, G4 or DN80, DN100, DN125

UPA S 250

G6 (standard), G8, NPT6, NPT8 orr DN150, DN200

Motor connection

UPA S 200

6“ and 8“ to NEMA, 10“ to KSB Werknorm

UPA S 250

6“ and 8“ to NEMA, 10“ and 12“ to KSB works standard

Drives

Both models

Rewindable asynchronous motor or high-efficiency permanent magnet synchronous motor

Installation

Both models

Cooling, suction or pressure shroud

For all technical data, characteristic curves and further information please refer to our detailed product pages

UPA 200 / UPA S 200

UPA 200 / UPA S 200

Single-stage or multistage single-entry centrifugal pump in ring-section design for vertical or horizontal installation. Optionally available with lift check valve or connection branch. For well diameters of 8 inches and above.

UPA 250 / UPA S 250

UPA 250 / UPA S 250

Single-stage or multistage single-entry centrifugal pump in ring-section design for vertical or horizontal installation. Mixed flow hydraulic systems with impellers that can be turned down. Optionally available with lift check valve or connection branch. For well diameters of 10 inches and above.
